Mp Micro Rpp Plastic Magnetic Pump - China

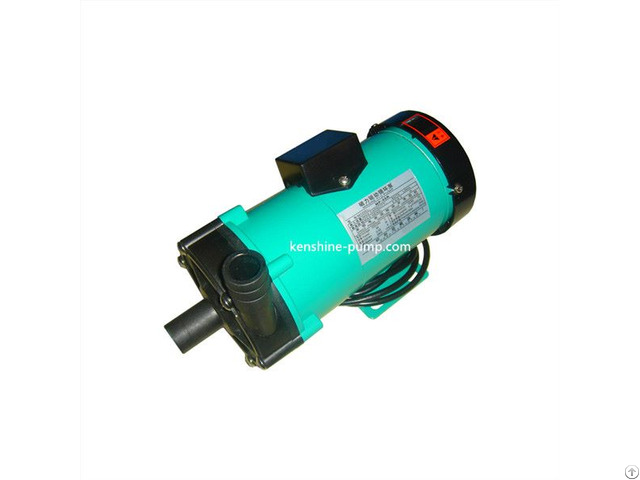

Micro RPP plastic magnetic pump

MP series micro magnetic RPP plastic pump is operated with magnetic materials on the coupling shaft and impeller respectively which attract each other.

It is completely sealed without the traditional mechanical shaft seal.

The rotational torque of the motor is driven by the active magnetism and the gravity of the driven magnetism to drive the blades to work .

It has selected a special ceramic bearing, with strong wear resistance and corrosion resistance, MP micro magnetic pump adopts the design without shaft seal, avoiding the defect of liquid leakage caused by corrosion after pollution in traditional mechanical shaft seal pump.

It is the ideal liquid conveying pump in industrial equipment.

Main parts and material

Pump case, impeller, isolating sleeve are made of RPP plastic.

Pump shaft:

aluminum oxide ceramics.

Active magnet and driven magnet: strontium ferrite.

Seal ring: Viton rubber.

Pumped liquids

The pump is widely used to transport acid and alkali and oil and rare liquids and toxin and volatile liquids in chemical industry, pharmacy, petroleum, electroplate, food, photo etc.

and water circulation system and filter system.

The pump without explosion proof motor is especially for flammable and explosive and leaky liquids.

Application:

Chemical industry: sodium carbonate chemical industry (production of hydrochloric acid, hydrofluoric acid and secondary chemicals);Production of fluoride and chemical fertilizers, Gas absorption tower reaction liquid circulation, Oil refining (sulfuric acid);Waste acid recovery and regeneration system, Strong acid transport between chemical plants and transport vehicles.

Pharmaceutical industry: production of luminescent chemicals (EL) for semiconductors, pesticides, pharmaceuticals, and water treatment chemicals

Electroplating industry: circulating filtration of various electroplating baths.

Photo industry: namely current photo system, X-ray film, black and white, color, stereo photo development and drying.

Electrical appliance industry: production of electrolytic capacitors (corrosion of aluminum film), Transfer of electrolytes in the manufacture of dry cells and batteries, etching of a circuit board, high purity chemical fluids are transported during semiconductor manufacturing.

Metal industry: Alumina membrane processing equipment, Oil removal and pickling during wire drawing and steel rolling, Removing oil and pickling before vehicle painting, Production of titanium oxide and rare earth elements.

Mining industry: metal smelting (transport and circulation electrolyte), Wash the waste liquid.

Food industry: production of gluconic acid (hydrochloric acid), Extraction of edible oil (sulfuric acid), Canned fruit industry (Hydrochloric acid).

Medical treatment: artificial kidney, heart and lung, ultrasonic cleaning machine and various medical equipment.

Water treatment: cleaning ion exchange resin, Pure water production equipment, seawater desalination plant.
