Mono Screw Pump - China

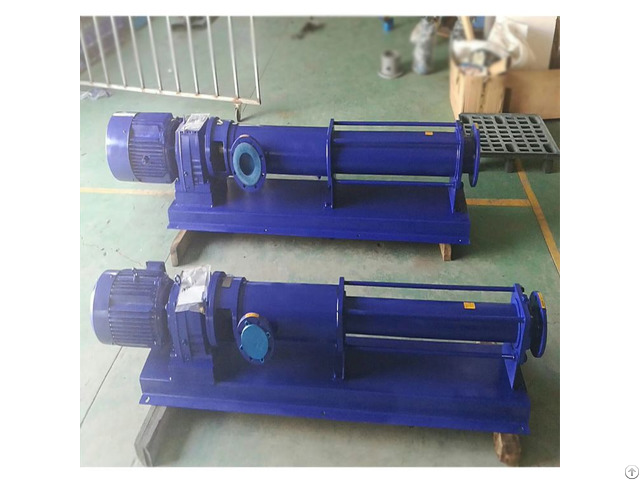

Mono Screw Pump

No API610 Chemical Pump API610 Chemical Pump, Screw Pump

Single screw pump has been widely used in developed countries, the German said “Mono pump“.

Because of its excellent performance, in domestic application scope is expanding fast.

It is the biggest characteristic of the medium of strong adaptability, smooth flow, high pressure fluctuation is small, self-priming capacity, this is irreplaceable by any other kind of pump.

Mono pump use wide range, mainly used in: environmental protection, shipbuilding industry, petroleum industry, medicine, cosmetic, brewing, building industry, mining industry, chemical industry, printing and paper industry.

1 - G type displacement mono pump high viscosity high pressure slurry mono pump is compact, small, easy to maintain, well-adapted to medium, stable flow, also with small pressure fluctuation.

2 - Pump has metal lined with rubber stator, which is made of various elastic material, such as NBR rubber, Silicon rubber.

3 - G type screw pump china haina pump could pump high viscosity fluid and medium with hard suspended solid/fiber as well.

4 - This pump is widely used in construction field, foodstuff and beverage industries by adopting silicon rubber stator.

5 - Mono pump may equipped with gear box motor, electric magnetic speed adjustable motor, CVT motor, frequency inverter motor, etc.

Model Capacity Pressure Speed Motor power Head (NPSH)r Inlet Outlet Max grain diameter Max fiber length (m3/h) (MPa) (r/min) (KW) (m) (m) (mm) (mm) (mm) (mm)

G20-1 0.8 0.6 960 0.75 60 4 25 25 1.5 25

G20-2 1.2 1.5 120 G25-1 2 0.6 960 1.5 60 32 25 2 30

G25-2 1.2 2.2 120 G30-1 5 0.6 960 2.2 60 50 40 2.5 35

G30-2 1.2 3 120 G35-1 8 0.6 960 3 60 65 50 3 40

G35-2 1.2 4 120 G40-1 12 0.6 960 4 60 80 65 3.8 45

G40-2 1.2 5.5 120 G50-1 20 0.6 960 5.5 60 4.5 100 80 5 50

G50-2 1.2 7.5 120 G60-1 30 0.6 960 11 60 5 125 100 6 60

G60-2 1.2 15 120 G70-1 40 0.6 720 11 60 150 125 8 70

G70-2 1.2 18.5 120 G85-1 65 0.6 630 15 60 150 150 10 80

G85-2 1.2 30 120 G105-1 100 0.6 500 30 60 200 200 15 110

G105-2 1.2 55 120 G135-1 150 0.6 400 45 60 250 250 20 150

G135-2 1.2 90 120
