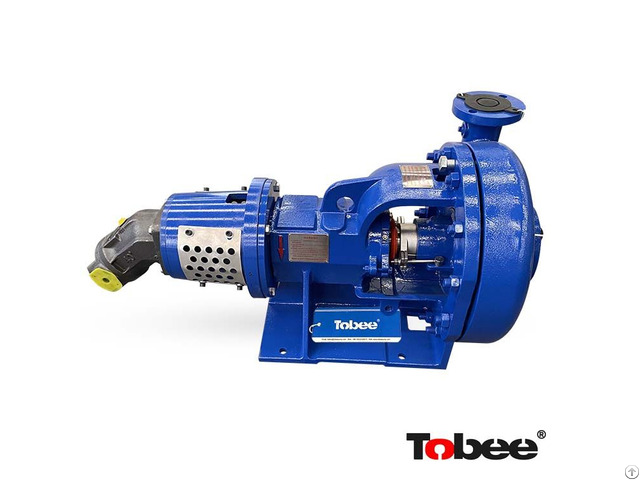

Mission Magnum Style Sandmaster 4x3x13 Hydraulic Drive Pump - China

Mission Sandmaster Centrifugal Pump Designs: • Compact heavy-duty frame design for small space;

• Multiple application in the oil and gas industrial;

• Full open impeller reduces shaft loading;

• Replaceable stuffing box cover, • Available in hard ductile iron, high chrome alloy fluid ends(casing, impeller, wear pad, stuffing box), customized fluid ends in stainless steel or aluminum bronze acceptable;

• Available in 8 different size, 3×2, 4×3, 5×4, 6×5, 8×6, 10×8;

• One-piece concentric and thicker casing with same power end;

• SKF bearings or equal;

• Oil or grease lube available; oil lube is for speeds in excess of 2400rpm; 3500rpm is available for 3x2x13 and 4x3x13 pump;

• Completely interchangeable with Mission™ Sandmaster™ and MCM™ Mud Master™ and all other popular brand design in the market;

• Spare parts are interchangeable with the standard model.

• The pumps can be unitized with hydraulic motors driven.

Mission Magnum type Sandmaster Centrifugal Pumps: 3x2x13 Sandmaster, w/11” impeller, mechanical seal, C- hydraulic adapter

3x2x13 Sandmaster, w/12” impeller, mechanical seal, C- hydraulic adapter

3x2x13 Sandmaster, w/13” impeller, mechanical seal, C- hydraulic adapter

4x3x13 Sandmaster, w/11” impeller, mechanical seal, C- hydraulic adapter

4x3x13 Sandmaster, w/10” impeller, mechanical seal, C- hydraulic adapter

4x3x13 Sandmaster, w/9” impeller, mechanical seal, C- hydraulic adapter

4x3x13 Sandmaster, w/12” impeller, mechanical seal, C- hydraulic adapter

4x3x13 Sandmaster, w/13” impeller, mechanical seal, C- hydraulic adapter

5x4x14 Sandmaster, w/11” impeller, mechanical seal, C- hydraulic adapter

5x4x14 Sandmaster, w/12” impeller, mechanical seal, C- hydraulic adapter

5x4x14 Sandmaster, w/13” impeller, mechanical seal, C- hydraulic adapter

5x4x14 Sandmaster, w/14” impeller, mechanical seal, C- hydraulic adapter
