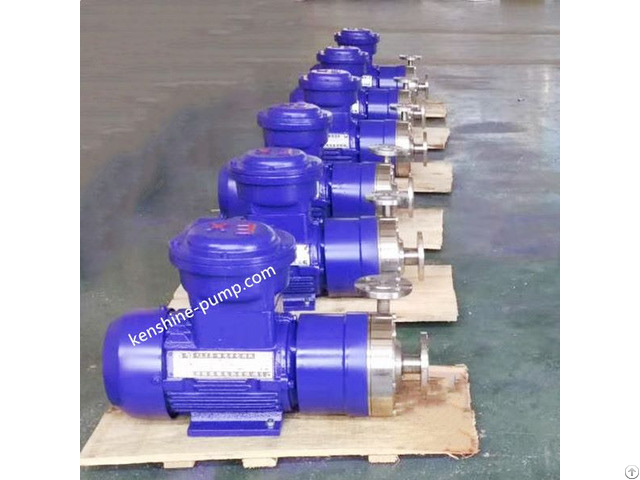

Magnetic Driving Centrifugal Stainless Steel Pump - China

CQ magnetic pump (also known as magnetic driving pump) is mainly composed of pump head, magnetic driver (magnetic cylinder), motor, baseplate and other parts.

Magnetic driver is composed of external magnetic rotor, internal magnetic rotor and non - magnetic isolation sleeve.

When the motor drives the external magnetic rotor to rotate through the coupling, the magnetic field can penetrate the air gap and the non-magnetic material isolation sleeve, drive the internal magnetic rotor connected with the impeller to make synchronous rotation, and realize the non-contact synchronous transmission of power, and transform the dynamic sealing structure which is easy to leak into the static sealing structure which is zero leakage.

Because the pump shaft and internal magnetic rotor are completely closed by the pump body and isolation sleeve, the problem of "run, run, drop and leak" is completely solved

Application field

CQ magnetic pump is used for medium temperature is -20℃ ~ 105℃, suitable for chemical industry, petroleum, metallurgy, electric power, papermaking, food, pharmaceutical and synthetic fiber industries.

The pump is used to transport a variety of corrosive liquids in not allowed to pollute occasion.

Advantages:

The shaft seal is removed, and the indirect drive is driven by magnetic coupling, which completely eliminates the worry of dripping and never contaminates the site.

CQ pump has the advantages of simple structure, beautiful appearance, small volume, low noise, reliable operation, convenient maintenance and so on.

Ferrite is used as the main material for magnetic transmission part and stainless steel is used as the wet flow part.

It is the most widely used non-leakage magnetic transmission centrifugal pump.

Pumped fluids:

Acid, alkali, oil, rare and precious liquid, poisonous, volatile liquid, leaking, flammable and explosive liquids

Company Contact:

• Posted By: Kenshine Pump And Valve MFG Co.,LTD

• Phone: 862133592713

• Address: Yindu Road 1535,Minhang District, Shanghai, Shanghai , China

• Email:

• Website: http://www.kenshine-pump.com

• Business Description: Manufacturer and sales for various pumps such as centrifugal

  pump, industrial pump, chemical pump, submersible pump, self priming

  pump, diaphragm pump, electromagnetic pump, gear pump, multistage pump etc

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD is the integrated enterprise specializing in research and development and design and produce and sales of pump and valves.

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD locates in MINHANG industrial zone, SHANGHAI which is the economic trade center in China and established in 1985 - KENSHINE PUMP&VALVE MANUFACTURING CO., LTD have developed and enlarged many years, supported by scientific management, sophisticated technology, advanced equipment and strict quality system.

  Company is continuously going up as the 40% rising speed every year and is as the one of industrial manufacturer in China.

  Company had ISO certificate in 1998 and the products are according to JB/JQ20103 1998 and JB/JQ20104 1998 standard.

  The quality of products is insured by PICC.

  Company has several sales and service networks in many middle and big cities of China.

  The products are sold to domestic cities and exported oversea about 40% products.
