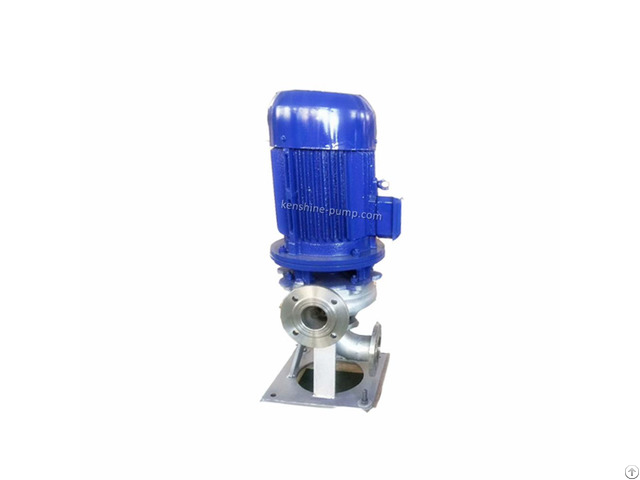

Lwp Stainless Steel Vertical Sewage Pump - China

WLP/LWP vertical stainless steel sewage pump is mainly composed of shaft, bearing frame, pump cover, impeller, pump seat, motor bracket, motor and other components.

The pump is a vertical single stage single suction volute pump and the impeller adopts a double flow channel structure, which can pass the fluids with fiber diameter 5 times as pump diameter and the fluids with solid particles diameter 50% as the pump diameter.

WLP/LWP Vertical stainless steel sewage pump is made of stainless steel material.

WLP/LWP Vertical sewage pump is for the energy saving, high efficiency and not clogging sewage pump.

The pump adopts the unique single channel impeller and hard alloy mechanical seal device.

Motor is separated by oil room.

Vertical stainless steel sewage pump features

1 - safe and reliable, reduce maintenance costs: after balance check rotor parts and reasonable bearing arrangement effectively balanced the radial force and axial force of the pump, so as to ensure the long-term stable operation of the unit, and has a small vibration, low noise.

2, strong flow capacity: smooth large flow channel, special impeller anti-blocking design, to ensure the efficient operation of the pump without blocking.

3, double seal, double protection: double seal series configuration, double protection, motor safety.

Vertical stainless steel sewage pump operating conditions

Flow: 2 to 1500 m3/h

Head range: 3 to 45m

Rated speed n: 970 to 2900r/min

Medium temperature: 15 ℃ to + 60 ℃

Medium density: 1.3 103kg/m3

PH value of medium: 1 to 14

Maximum working pressure of the system: 0.6mpa

Company Contact:

• Posted By: Kenshine Pump And Valve MFG Co.,LTD

• Phone: 862133592713

• Address: Yindu Road 1535,Minhang District, Shanghai, Shanghai , China

• Email:

• Website: http://www.kenshine-pump.com

• Business Description: Manufacturer and sales for various pumps such as centrifugal

  pump, industrial pump, chemical pump, submersible pump, self priming

  pump, diaphragm pump, electromagnetic pump, gear pump, multistage pump etc

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD is the integrated enterprise specializing in research and development and design and produce and sales of pump and valves.

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD locates in MINHANG industrial zone, SHANGHAI which is the economic trade center in China and established in 1985 - KENSHINE PUMP&VALVE MANUFACTURING CO., LTD have developed and enlarged many years, supported by scientific management, sophisticated technology, advanced equipment and strict quality system.

  Company is continuously going up as the 40% rising speed every year and is as the one of industrial manufacturer in China.

  Company had ISO certificate in 1998 and the products are according to JB/JQ20103 1998 and JB/JQ20104 1998 standard.

  The quality of products is insured by PICC.

  Company has several sales and service networks in many middle and big cities of China.

  The products are sold to domestic cities and exported oversea about 40% products.
