Lgp Side Channel Multistage Centrifugal Pump - China

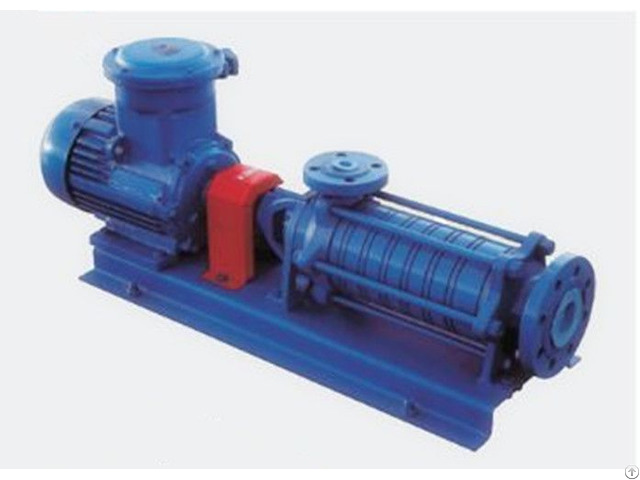

LPGP-65 LPG multistage pump is a centrifugal side channel pump with a horizontal structure, a total of 6 stages, the shaft is mechanically sealed, no cooling.

LPGP-65 multistage pump is used to transfer LPG, especially for liquids with high pressure difference, low cavitation NPSH and gas content up to 50 percent, such as LPG pumped from underground tanks.

The pump USES a pre-compressed turbine at the suction end, which makes it suitable for use in the case of low cavitation NPSH allowance.

positive suction heads is lower than 0.5 m.

Therefore, the pump can be used in bad air suction conditions.

Application: 1 - Bottling 2 - Pump liquefied gas from underground tanks; 3 - Load and unload large quantities of gas-filled tanker cars, tanker cars; 4 - Liquefied gas pump gas recovery Technical Parameter: Max.

Capacity: 42 m3/h Max.

Discharge.

Pressure: 40 bar Max.

Viscosity: 100 cSt Temperature Range: -40 to 220 degree celsius Model LPGP-65 LPGP-150

Medium LPG Working temperature -32 to 60 degree celsius

Inlet/outlet diameter DN65/DN40 DN40/DN25

Motor 380V, 50HZ/4KW/1450RPM 380V, 50HZ, 5.5kw/1450rpm

Number of stages 6 6

Connecting flanges DIN 2501 PN40 DIN 2501 PN40
