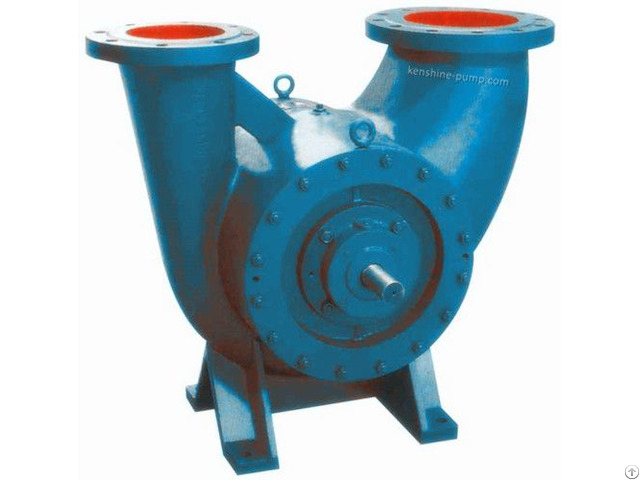

Kts Single Stage Double Suction Centrifugal Pump For Air Condition - China

KTS pump is a single-stage double-suction pump designed and developed by our company for the air conditioning and refrigeration circulation system of high-rise buildings, mainly used for central air conditioning and refrigeration, water circulation system of high-rise buildings, as well as water suction and drainage projects in industrial and mining enterprises, cities, power stations and so on KTS double suction pump is mainly for absorption and delivery of dilute, clean, non-corrosive water and other liquids similar to water in physical and chemical properties (liquids do not contain solid particles or fibers) The working conditions Maximum temperature: 0-80°C Operating pressure: 1.6mpa Pump description: this type of pump has large flow, high pressure resistance, high efficiency and energy saving, compact structure, easy installation and maintenance, low speed, low noise, long life and high universality, good interchangeability and other characteristics Since the rotor of the pump is supported on the left and right bearing bodies, the two bearings can be separated by removing them.

During maintenance, there is no need to remove the pump body and inlet and outlet pipe path.

The impeller is made of wear-resistant alloy cast iron or cast copper precision casting, which can be selected by the user according to the usage High strength stainless steel shaft and imported high quality bearing, high quality mechanical seal.

Add high temperature resistant lubricant, can improve working life.

In order to adapt to different installation occasions, this type of pump provides two types of inlet and outlet.

One is horizontal inlet and vertical outlet, l-shaped.

The other is vertical inlet and outlet with U shape.

Users can choose the model according to their own needs.

If not specified, the direction of the pump is clockwise from the motor direction Application: KTS air conditioning double suction pump is a large flow water pump specially designed for large refrigeration air conditioning system and large water supply and drainage occasions.

Mainly used for central air conditioning refrigeration, high-rise building water circulation system, industrial and mining enterprises, urban drainage, power station water supply and drainage projects and other occasions to transport clean water.

Scope of performance Suction diameter: 200 ~ 350mm Discharge diameter: 150 ~ 300mm Flow rate: 188 ~ 1470m3/h Head: 16.5 ~ 75m Speed: 1480 r/min Temperature: 0 ~ 105℃
