Jxm A Mechanical Diaphragm Metering Pump - China

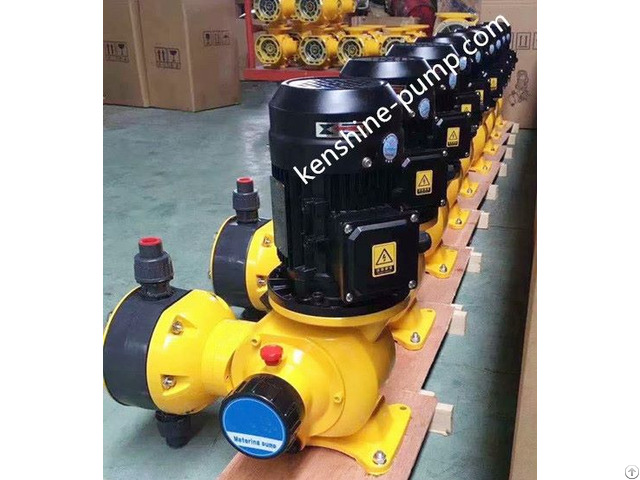

JXM-A mechanical diaphragm metering pump

The metering pump is suitable for conveying the liquid without solid particles with a temperature of -30 ~ 100℃ and a viscosity of 0.3 ~ 800mm2/s.

Metering pump has the advantage of no leakage, so it is suitable for conveying flammable, explosive, volatile, strong corrosion, radioactive, toxic, suspension and expensive liquid.

In particular, the diaphragm metering pump with alarm device can send the alarm within 2 seconds after diaphragm rupture, ensuring the safety of operators and processes.

The diaphragm metering pump is widely used in petroleum, chemical, electric power, atomic energy, medicine, food, environmental protection, textile and mining industries

FEATURES: Double eccentric adjustment The maximum rated flow with =500L/h Maximum discharge pressure: P2=1.2Mpa A variety of material pump head optional (PVC, PCDF, PTFE, 304, 316L) Mechanically driven PTFE diaphragm Manual / automatic stroke adjustment / digital frequency conversion control are optional The stroke can be adjusted under static and dynamic conditions Maximum medium temperature: -100C - 1000C Pump adjustment range 10%-100% flow fine <+1% Diaphragm rupture alarm monitoring mechanism

Company Contact:

• Posted By: Kenshine Pump And Valve MFG Co.,LTD

• Phone: 862133592713

• Address: Yindu Road 1535,Minhang District, Shanghai, Shanghai , China

• Email:

• Website: http://www.kenshine-pump.com

• Business Description: Manufacturer and sales for various pumps such as centrifugal

  pump, industrial pump, chemical pump, submersible pump, self priming

  pump, diaphragm pump, electromagnetic pump, gear pump, multistage pump etc

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD is the integrated enterprise specializing in research and development and design and produce and sales of pump and valves.

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD locates in MINHANG industrial zone, SHANGHAI which is the economic trade center in China and established in 1985 - KENSHINE PUMP&VALVE MANUFACTURING CO., LTD have developed and enlarged many years, supported by scientific management, sophisticated technology, advanced equipment and strict quality system.

  Company is continuously going up as the 40% rising speed every year and is as the one of industrial manufacturer in China.

  Company had ISO certificate in 1998 and the products are according to JB/JQ20103 1998 and JB/JQ20104 1998 standard.

  The quality of products is insured by PICC.

  Company has several sales and service networks in many middle and big cities of China.

  The products are sold to domestic cities and exported oversea about 40% products.
