Immersible Vertical Multistage Centrifugal Pump For Machine Coolant - China

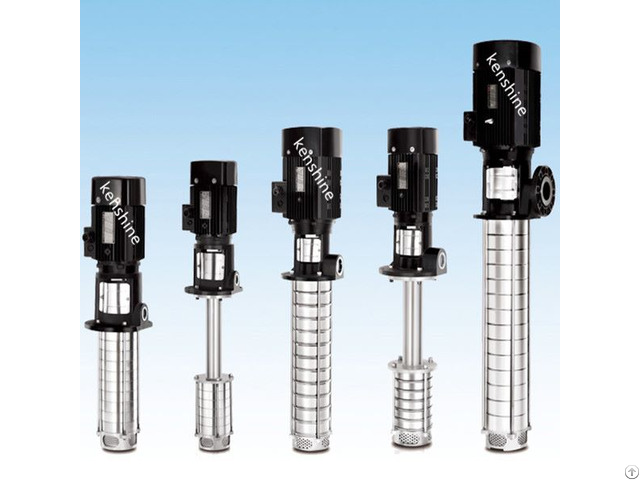

Immersible vertical multistage centrifugal pump for machine coolant

CDLK/CDLKF is a self-priming vertical multistage centrifugal pump mounted with standard motor.

The motor shaft is directly connected to the pump shaft through a coupling on the pump head.

The pump can be equipped with intelligent protector according to needs to effectively protect dry rotation, phase loss and overload of the pump.

To meet the installation depth of the tank or container, a cavity can be installed to change the length of the pump itself.

Range of application

CDLK/CDLKF is used for conveying machine tool coolant, lubricating fluid, condensate water conveying, industrial cleaning equipment and other occasions suitable for use in immersion pumps.

It is suitable for different temperature, flow and pressure ranges.

CDLK is suitable for non-corrosive liquid and CDLKF pump is for slightly corrosive liquid.

It is used in electric spark, lathe, grinder, machining center, cooling device, industrial cleaning equipment, filtration system, etc.

Motor

The motor is a fully enclosed, air-cooled two poles standard motor.

Protection level: IP55

Insulation grade: F

Standard voltage: 50HZ: 1phase*220-230/240V

3*200/346V

3*220-240/380-415V

3*220-225/380-440V

Other voltage motors are available as required.

Single-phase voltage is available from 0.37-2.2kW.

Operating conditions

A thin, clean, non-explosive liquid without solid particles or fibers, capable of transporting water and cooling aqueous solutions and cutting lubricants.

Liquid temperature: -15℃~+70℃ hot water type +70℃~+120℃
