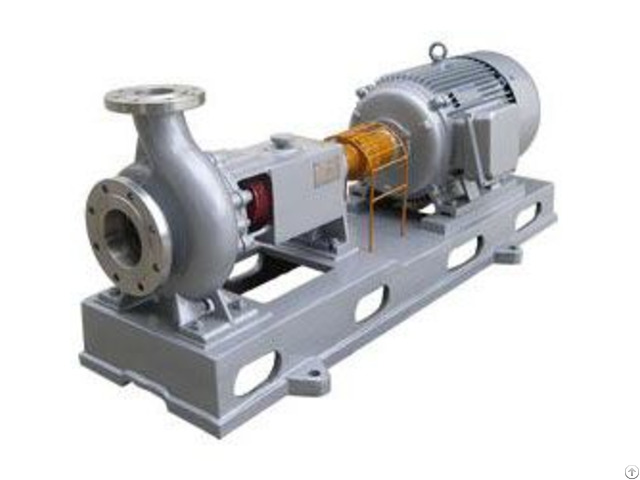

Ij Series Chemical Industry Centrifugal Pump - China

IJ Chemical resistant centrifugal alkali pump

A: Characteristics:

Reliable and Steady running, continuous working for 24 hours, better design of cantilever, small vibration, low noise.

Seal type: mechanical seal, dynamic seal, gland packing seal etc.

(No leakage and long life).

Summary:

IJ chemical resistant centrifugal alkali pump is improved on the base of IH model single stage single suction chemical industry pump according to the standard ISO2858-1975 - The IJ chemical resistant centrifugal alkali pump is used to transfer the corrosive liquid with solid content less than 5% and suspension grain less than 3mm.

Pump discharge pressure is up to 1.6MPA, Working temperature: -20 to 180 Degree Celsius.

B.

Application fields:

Alkali industry:

Soda and ammonia brine mother liquid from ammonia-hydrazine production, caustic soda with normal temperature from Chlorine-alkali production, chlorine products and chlorate, hypochlorite.

Nonferrous metallurgy:

electrolyte liquid from Electrolytic copper and nickel, acid mist liquid from production of cobalt, slurry from production of zinc ore, vanadate ammonia from production of vanadium, acid and sulfuric acid from production of gold etc.

Iron and steel industry:

Electroplating, pickling, waste acid treatment

Acid industry:

Nitric acid, sulfuric acid, hydrochloric acid, phosphoric acid, acetic acid, etc.

Petrochemical refining acetaldehyde, alkyl manufacturing.

Synthetic fiber and plastics industry:

Dilan, PVC production, textile, printing and dyeing industry.

Papermaking industry:

Transport of pulp cooking and bleaching fluids.

Fertilizer industry:

Urea, nitric acid production.

Pharmaceutical industry:

Pharmaceutical and pesticide production.

Environmental protection:

Transportation of acid mist solution.

C.

Pump materials:

SS304, SS304L, SS316, SS316L, Hastelloy alloy B and other alloy steel etc

2Cr13, 0Cr18Ni9, 1Cr18Ni9, 0Cr18Ni9Ti, 1Cr18Ni9Ti, 0Cr18Ni12Mo2Ti, 40Cr, 1Cr18Ni12Mo2Ti, Ti(Titanium, Monel, 00Cr17NI12Mo2Ti, HastelloyB alloy, 0Cr25Ni20, F5 series alloy, 20alloy steel, 0Cr25Ni6Mo3Cu2Mn2Si

D.

Performance range for IJ Series chemical resistant centrifugal alkali pump：

Flow rate(Q)：2m3/h to 1200 m3/h, Head(H)：3m to 135m, Speed(N)： 2900RPM or 1450RPM, Motor power(P)：0.55KW to 200kw, Pump inlet and outlet: 32mm to 350mm, Max.

working pressure: 1.6 Mpa

Company Contact:

• Posted By: Kenshine Pump And Valve MFG Co.,LTD

• Phone: 862133592713

• Address: Yindu Road 1535,Minhang District, Shanghai, Shanghai , China

• Email:

• Website: http://www.kenshine-pump.com

• Business Description: Manufacturer and sales for various pumps such as centrifugal

  pump, industrial pump, chemical pump, submersible pump, self priming

  pump, diaphragm pump, electromagnetic pump, gear pump, multistage pump etc

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD is the integrated enterprise specializing in research and development and design and produce and sales of pump and valves.

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD locates in MINHANG industrial zone, SHANGHAI which is the economic trade center in China and established in 1985 - KENSHINE PUMP&VALVE MANUFACTURING CO., LTD have developed and enlarged many years, supported by scientific management, sophisticated technology, advanced equipment and strict quality system.

  Company is continuously going up as the 40% rising speed every year and is as the one of industrial manufacturer in China.

  Company had ISO certificate in 1998 and the products are according to JB/JQ20103 1998 and JB/JQ20104 1998 standard.

  The quality of products is insured by PICC.

  Company has several sales and service networks in many middle and big cities of China.

  The products are sold to domestic cities and exported oversea about 40% products.
