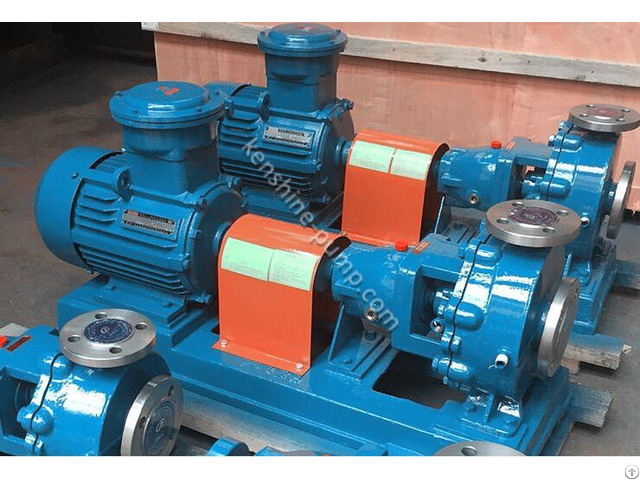

Ihr Stainless Steel Chemical Centrifugal Pump With Heat Preservation Jacket - China

IHR explosion proof corrosion resistant heat preservation pump is the single stage single suction cantilever centrifugal pump.

IR pump is developed at IHR chemical centrifugal .

IHR explosion proof corrosion resistant heat preservation pump is suitable to transfer high temperature corrosive chemical fluids with high freezing point (or the temperature of crystallization point is high) in chemical industry, chemical fiber, petroleum, food, pharmaceutical and other industries.

Features:

Explosion proof, corrosion resistance, heat preservation pump

Flow rate: 3 to 460m3/h

Head: 3 to 132m

Design pressure: 1.6MPA

Liquid temperature: not higher than 250 degree Celsius.

Horizontal radial part of rear door structure is convenient for maintenance without removing the pipeline

Pump is axial suction and radial discharge with intermediate support

Oil lubricated bearing and bearing frame is equipped with oil level gauge and water cooling device.

Heat preservation steam system is through the flange or screw connection.

Connection between pump and motor is with shaft coupling
