Ihgb Stainless Steel Inline Centrifugal Pump - China
price: 850.00 Dollar US$

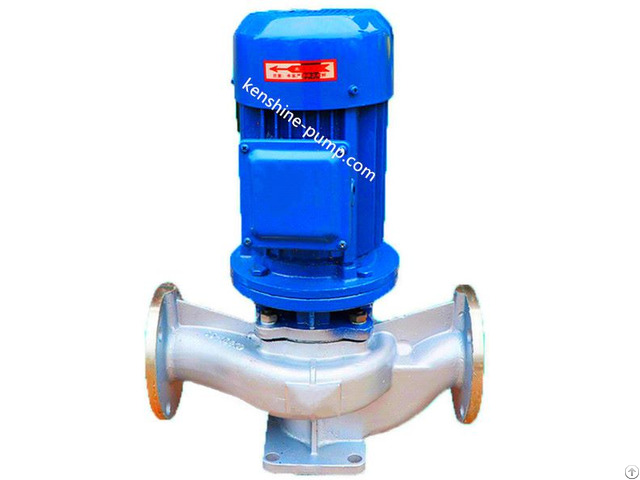

Vertical stainless steel pipeline centrifugal chemical transfer pump
Pump material and application
IHG, IHGB type vertical stainless steel pipeline centrifugal pump is made of stainless steel (SUS304, SUS316, SUS316L etc.
) The stainless-steel pump is used for conveying corrosive liquid without solid particles.
The corrosive liquid is like water.
IHG Vertical stainless steel centrifugal chemical transfer pump is widely used in petroleum, chemical industry, metallurgy, electric power, papermaking, food and pharmaceutical and synthetic fiber sectors.
Liquid temperature is -20℃ to 120℃.
Features
Vertical structure with same inlet and outlet
Closed coupling between pump and motor, no vibration, low noise
Shaft sea: mechanical seal with high-quality
Convenient installation and maintenance, disassemble pump connection nut to open rotor parts
Pump can be used by series or parallel
Pump can be installed vertically or horizontally.
Performance range
Q: 2-2000m3/h
H: 2-125m
Caliber: 20-500mm
Closed impeller, stainless steel pump material
Motor: Standard motor or explosion-proof motor Model explanation:
IHG50-200
IHG: Vertical stainless-steel centrifugal pump
50: Pump inlet(50mm)
200: impeller nominal diameter(200mm)
Company Contact:
- Posted By: Kenshine Pump And Valve MFG Co.,LTD
- Phone: 862133592713
- Address: Yindu Road 1535,Minhang District, Shanghai, Shanghai , China
- Email:
- Website: http://www.kenshine-pump.com
Published date: July 15, 2020
- Business Description: Manufacturer and sales for various pumps such as centrifugal
pump, industrial pump, chemical pump, submersible pump, self priming
pump, diaphragm pump, electromagnetic pump, gear pump, multistage pump etc
KENSHINE PUMP&VALVE MANUFACTURING CO., LTD is the integrated enterprise specializing in research and development and design and produce and sales of pump and valves.
KENSHINE PUMP&VALVE MANUFACTURING CO., LTD locates in MINHANG industrial zone, SHANGHAI which is the economic trade center in China and established in 1985 - KENSHINE PUMP&VALVE MANUFACTURING CO., LTD have developed and enlarged many years, supported by scientific management, sophisticated technology, advanced equipment and strict quality system.
Company is continuously going up as the 40% rising speed every year and is as the one of industrial manufacturer in China.
Company had ISO certificate in 1998 and the products are according to JB/JQ20103 1998 and JB/JQ20104 1998 standard.
The quality of products is insured by PICC.
Company has several sales and service networks in many middle and big cities of China.
The products are sold to domestic cities and exported oversea about 40% products.
