Hydraulic Pump - Korea

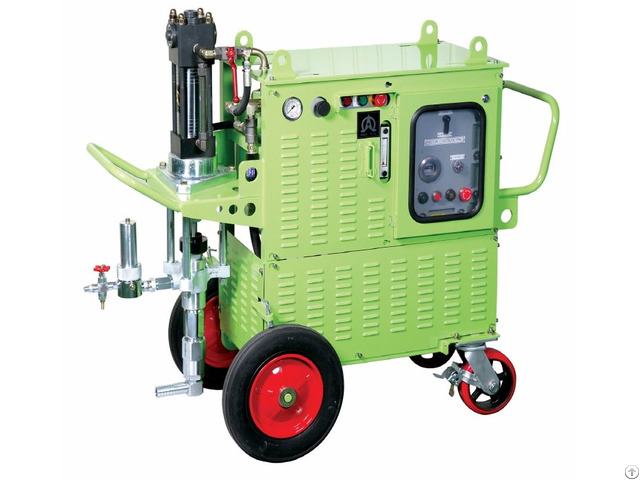

◆ Hydraulic Pump HK-HP-1000

- Ultra high pressure pump of 560kgf/㎠

- Possible using 2 guns

- Low pulsation comparing with pneumatic pump

- Wide pressure adjusting range

- Automotive electronic component for prevention of explosion specification

- Typical fluid handled : Inorganic-zinc, Tar-epoxy, Alkyd, Urethane, High viscosity paint

- Application : Shipyards, Construction, Metal structure, Heavy anti-corrosive coating, High viscosity coating

◆ Technical Data [Part NO.

HK-HP-1000]

- Pressure Ratio : 2.8: 1 / 3.4: 1 / 3.7: 1

- Max.

Delivery : 13L/min.

/ 9.5L/min.

/ 9L/min.

- Output per Cycle : 250cc / 190cc / 180cc

- Operating Hydraulic Pressure : 165kgf/cm² / 140kgf/cm² / 130kgf/cm²

- Operating Fluid Pressure : 462 kgf/cm² / 476kgf/cm²/ 481kgf/²

- Max.

Hydraulic Pressure : 200kgf/cm²/ 200kgf/cm²/ 200kgf/cm²

- Max.

Fluid Pressure : 560kgf/cm²/ 680kgf/cm²/ 740kgf/cm²

- Power Source : 3ØX220V / 380V / 440V

- Electric Motor : 7.5kwX4p

- Dimension(LXWXH) : 110X65X120cm

- Weight : Appx.

400kg

- Noise : 70~75dB

Company Contact:

• Posted By: Hankil Precision

• Phone: +82-(0)10-7179-5131

• Address: Songjeong-dong,84,Noksans andan261ro, Busan, Korea, Busan , Gangseo-gu , Korea

• Email:

• Website: http://www.han-kil.com

• Business Description: Hankil Precision is a small giant venture company specialized in manufacturing painting equipment and facilities.

  It has retained patents along with the acquisition of ISO 9001 certificate, CE certificate of conformity and certificate of INNO-BIZ, Our main clients include HYUNDAI Heavy Industries Co., Ltd, DAEWOO shipbuilding & Marine Engineering Co., Ltd, SAMSUNG Heavy Industries Co., Ltd, HYUNDAI Mipo Dockyard Co., Ltd, SPP Shipbuilding Co., Ltd, and more.

  We mostly provide painting equipment not only for domestic customers but also for overseas customers.

  Based on 24-years accumulated technology and expertise, We have ceaselessly developed new products such as PFP type dual fluid realize sophisticated products tailored to your project, with strict quality control and follow-up management.

  We wish you your business success.

  Thank you.
