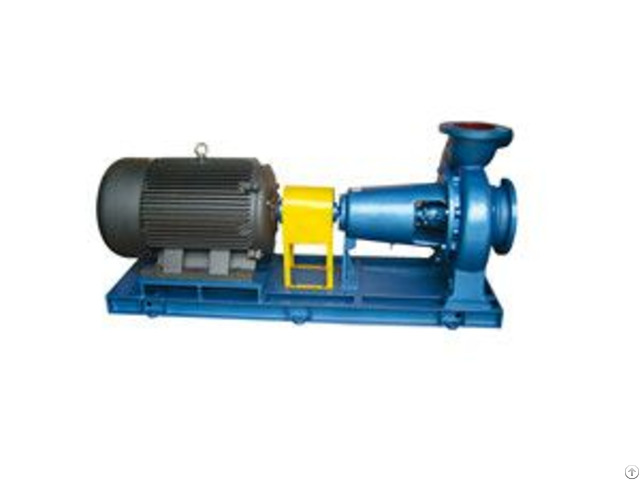

Horizontal Overhung Foot Mounted Blockless Medium Consistency Pulp And Slurry Pump - China
price: contact company for price
Standards: ShengQuan Operating Parameters: Capacity Q: up to 2000 m³/h ( 8800 gpm )/ Head H: up to 80 m ( 262 ft )/ Pressure P: up to 1.0 MPa ( 145 psi )/ Temperature T: up to 100 ℃ ( up to 212 ℉ ) Features: Standard modularization design/ The rear pull-out design enables the bearing pedestal including impeller and shaft seal to be removed with the volute casing left in position.
The driver does not need to be removed if a spacer coupling is used/ The standard seal arrangement has three options: gland packing, single mechanical seal and double seal/ Open impeller, conveying pulp concentration up to 8% / Replaceable wearplate/ Standard grease lubrication/ For the pulp slurry process, the use of cutting slot technology/ The pump rotation is clockwise when looking from the drive end.
/ Jack screws (motor side) for an easier alignment setting
Company Contact:
- Posted By: Yantai Shengquan Pump Co., Ltd
- Phone: +86-535-4702066
- Address: No.515, Jinniushan Road, Muping District, , Yantai , Shandong , China
- Email:
- Website: http://www.sq-pump.cn
Published date: April 25, 2019
- Business Description: Yantai Shengquan Pump Co., Ltd. was founded in 1992 - The company is a professional manufacturer which develops, manufactures, sells centrifugal pumps.
There are 240 staff and workers, including 30 technicians.
The company has two factories, with a total area of 135, 000 square meters.
The current total is USD 29 million.
There are 100 sets of equipment, including two sets of international standard closed/open mode testing stations.
The company was certified the Quality System Certification of GB/T9001: 2008/ISO9001: 200 8 Standard.
The company is a member of China General Machinery Industry Association Pump Association.
This company is a high quality supplier to SINOPEC, CNOOC, CHEMCHINA, CSECE, etc.
