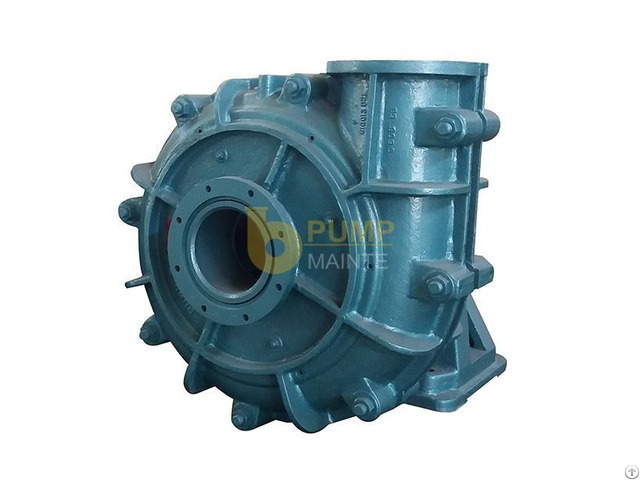

Heavy Duty Quality Horizontal 8 Centrifugal Sludge Mining Slurry Pump

Structure

The pump is horizontal, single stage, single suction, overhung, double casing, centrifugal slurry pump.

Main parts: impeller, volute liner, suction bush, back cover plate, pump cover and casing.

The character is: the wet parts' material is special high chrome alloy anti-wearing casting iron, long using life.

The discharge of the pump can realize to change at 45 degree interval.

The sealing can be mechanical, packing gland or expeller.

Slurry Pump Manufacturers: shijiazhuan g mainte slurry pump co., ltd

Application

Widely used in mining, metallurgy, coal, electric power, building materials and other industries.

Performance range

Diameter: 25 ~ 650mm

Flow range: 5~3500m3/h

Head range: 10 ~ 90m

HS Slurry Pump Parameters

More information visit our website.

HS Pump Code Flow Q(m3/h) Head H(m) Rotating speed n(r/min) Efficiency η(%) NPSHr(m) Discharge diameter(mm) Suction diameter(mm)

25HS－B 10.6～25 8～68 1200～3800 41 2.0～4.0 25 40

40HS－B 25～54 5.5～58 1000～3200 45 2.5～5.0 40 50

50HS－C 38～75 12～64 1300～2700 60 2.0～4.0 50 75

75HS－C 85～180 5.8～62 800～2200 71 2.0～4.0 75 100

75HS－D 85～180 5.8～62 800～2200 71 2.0～4.0 75 100

100HS－D 162～360 12～56 800～1500 73 2.0～5.1 100 150

150HS－E 330～720 11～58 500～1140 77 2.0～9.0 150 200

150HS－R 330～720 11～58 500～1140 77 2.0～9.0 150 200

200MS－R 860～1440 14～60 600～1100 81 4.0～9.2 200 250

200HS－ST 612～1360 11～61 400～850 75 4.0～10 200 250

250HS－ST 830～1980 7～68 300～800 82 6.0 250 300

300HS－ST 1280～2770 13～64 300～650 77 3.0～10 300 350

350HS－TU 1368～3080 11～63 250～550 79 4.0～10 350 400

Shijiazhuang mainte slurry pump Co., Ltd. Is a scientific and technological innovative pump production company integrating R & D, production, marketing and service of desulfurization pump, slurry pump, dredging pump, sewage pump, non blocking centrifugal pump, submersible slurry pump, clean water pump and other products.

The company has strong technical production capacity and perfect service system.
