Gy Series High Temperature Molten Salt Circulating Pump - China

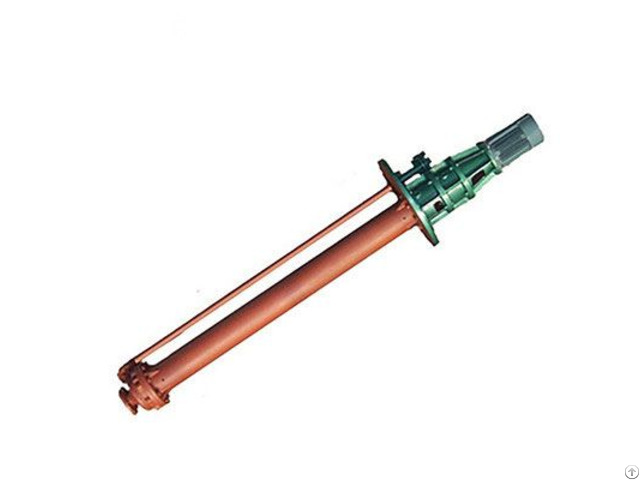

GY Series high temperature molten salt pump

High temperature molten salt circulation pump or molten salt transfer pump or high temperature liquid pump.

Summary:

GY type high temperature molten salt pump can stably transport the liquid with liquid temperature up to 540 degree Celsius by using effective cooling means, reasonable structure and materials.

GY Series high temperature molten salt pumps have the advantages of high efficiency, smooth operation, small vibration, low noise, long life, low maintenance, low maintenance costs and so on.

Pumps quality reaches the level of similar foreign products

Performance range:

Temperature: 180 to 540 degree Celsius

Capacity : 3 to 600 m3/h

Head: 10 to 70m

dielectric viscosity is not more than 300cp

Application:

GY type molten salt pump is used in conveying high temperature molten salt (nitrate) for melamine project, alumina projects and caustic soda project and other fine chemical industries.

Specification sheet:

Model Pump rated speed for 1450rpm Capacity

Q(m3/h) Head

H(m) Efficiency

η(%) Motor power(Kw) Submerged depth

(m)

GY32-125 6.3 5 45 1.1 0.8 to 3

GY32-160 6.3 8 40 1.5 0.8 to 3

GY32-200 6.3 12.5 33 2.2 0.8 to 3

GY32-250 6.3 20 27 4 0.8 to 3

GY50-125 12.5 5 55 1.5 0.8 to 3

GY50-160 12.5 8 51 1.5 0.8 to 3

GY40-200 12.5 12.5 46 3 0.8 to 3

GY40-250 12.5 20 39 5.5 0.8 to 4

GY40-315 12.5 32 33 11 0.8 to 4

GY65-125 25 5 64 1.5 0.8 to 3

GY65-160 25 8 62 3 0.8 to 3

GY50-200 25 12.5 57 4 0.8 to 3

GY50-250 25 20 50 7.5 0.8 to 4

GY50-315 25 32 48 15 0.8 to 5

GY80-125 50 5 69 3 0.8to 3

GY80-160 50 8 68 4 0.8 to 3

GY65-200 50 12.5 68 5.5 0.8 to 4

GY65-250 50 20 63 11 0.8 to 5

GY65-315 50 32 58 18.5 0.8 to 5

GY100-200 100 12.5 73 15 0.8 to 5

GY100-250 100 20 72 18.5 0.8 to 5

GY100-315 100 32 65 45 1.2 to 6

GY100-400 100 50 55 55 1.2 to 6

GY125-250 200 20 77 30 1.2 to 6

GY125-315 200 32 75 45 1.2 to 6

GY125-400 200 50 70 90 1.2 to 8

GY150-250 400 20 79 75 1.2 to 8

GY150-315 400 32 79 90 1.2 to 8

GY150-400 400 50 78 132 1.2 to 8
