G Single Screw Eccentric Rotor Pump - China

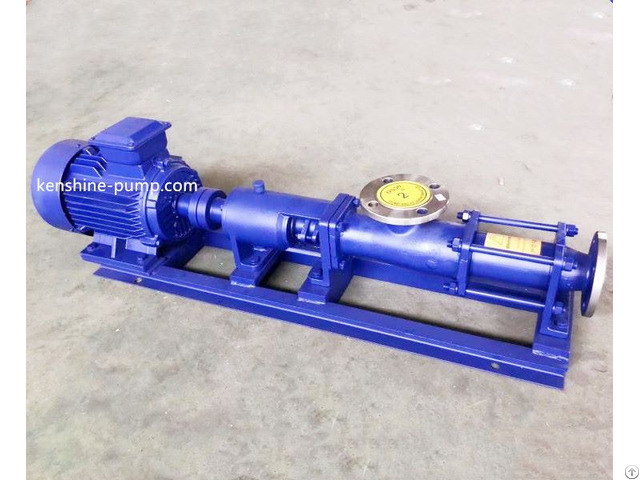

Single screw eccentric rotor pump mono pump

Single screw pump is called as mono pump and eccentric rotor pump.

It is for positive displacement pump.

It relies on the screw shaft (the rotor) and rubber set of mesh (stator), when the power end by universal joint drives rotor, stator center around the rotor to work and stator is continuously meshed and further forms the vacuum chamber, the vacuum chamber is for uniform axial movement, the medium is conveyed from inlet to outlet.

The medium into suction vacuum cavity flows through the stator without stirring and destruction.

Stable flow rate and output pressure.

Driving motors

directly driven by motor with shaft coupling, or low speed motor with belt transmission, gearbox, variable speed motor etc.

Application:

Transport of industrial sewage, domestic sewage, sewage sludge containing solid particles and short fiber.

Oil water, oil residue, oil sewage, etc.

conveying.

Transfer of crude oil, mixtures of crude oil and water, mixtures of coal gas and water, Conveying all kinds of viscous slurry, emulsion, all kinds of ointment

All kinds of sticky starch, concentrated lees, grain products residue, all kinds of sauces, slurry, solid slurry transport

cement mortar, lime slurry, coating and paste transport.

All kinds of suspension, grease, all kinds of colloidal slurry, all kinds of adhesive liquids transport

Oil ink, paste, paper pulp, slurry conveying.

Coal water slurry transportation

Company Contact:

• Posted By: Kenshine Pump And Valve MFG Co.,LTD

• Phone: 862133592713

• Address: Yindu Road 1535,Minhang District, Shanghai, Shanghai , China

• Email:

• Website: http://www.kenshine-pump.com

• Business Description: Manufacturer and sales for various pumps such as centrifugal

  pump, industrial pump, chemical pump, submersible pump, self priming

  pump, diaphragm pump, electromagnetic pump, gear pump, multistage pump etc

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD is the integrated enterprise specializing in research and development and design and produce and sales of pump and valves.

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD locates in MINHANG industrial zone, SHANGHAI which is the economic trade center in China and established in 1985 - KENSHINE PUMP&VALVE MANUFACTURING CO., LTD have developed and enlarged many years, supported by scientific management, sophisticated technology, advanced equipment and strict quality system.

  Company is continuously going up as the 40% rising speed every year and is as the one of industrial manufacturer in China.

  Company had ISO certificate in 1998 and the products are according to JB/JQ20103 1998 and JB/JQ20104 1998 standard.

  The quality of products is insured by PICC.

  Company has several sales and service networks in many middle and big cities of China.

  The products are sold to domestic cities and exported oversea about 40% products.
