Fsb Horizontal Fluoroplastic Pump - China

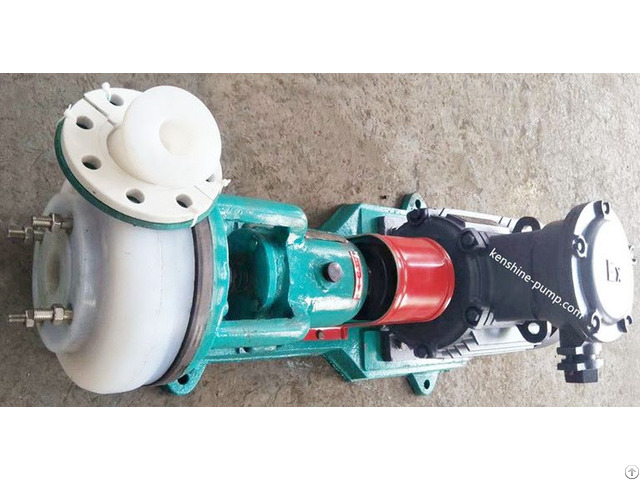

Horizontal fluoroplastic centrifugal pump

Pump body, pump cover, impeller and shaft sleeve are made of fluorine plastic (FEP/F46) with metal insert.

Shaft seal is bellows mechanical seal and static ring of 99% alumina ceramic or silicon nitride and dynamic ring of PTFE lining.

The fluoroplastic material of FEP/F46 has the very good corrosion resistance.

FSB horizontal fluoroplastic pump is widely used to convey acid, alkali and solvent with any concentration.

Such as sulfuric acid, hydrochloric acid, acetic acid, hydrofluoric acid, nitric acid and aqua regia, strong alkali, strong oxidizing agents, organic solvents, reductant and other strong corrosive medium.

FSB horizontal fluoroplastic pump has the advantages of compact and reasonable structure, strong corrosion resistance, tight and reliable sealing performance, stable work, low noise, high mechanical strength, non-aging, no toxin decomposition, convenient maintenance, smooth flow channel, high efficiency, energy saving and so on.

It is widely used in chemical industry, acid production, alkali production, smelting, rare earth, pesticide, dye, medicine, papermaking, electroplating, electrolysis, acid cleaning, radio, foil formation, scientific research institutions, national defense industry and other industries.

technical parameters:

Flow rate: 3.6 ~ 100m3/h;

Head: 15 ~ 55m;

Speed: 2900r/min;

Power: 1.5 ~ 18.5kw;

Inlet diameter: 25 ~ 100mm;

Liquid temperature: -20℃ ~ 120℃.

The disassembly of the pump

1 - Pump and motor are connected by claw coupling.

When disassembling, first loosen 4 connection bolts between bracket and base, so as to detach pump and motor.

2 - Loosen the connection bolt on the back cover of the pump body.

Tap the pump body with a wooden handle to detach.

3 - Loosen the hanging bolt in the coupling between the vane shaft and the pump shaft with Morse taper.

4 - Loosen the mechanical seal! The screw is not fixed, tap the hanging bolt in the center of the coupling shaft with a wooden hammer, loosen the mohs taper of the blade shaft and the pump shaft, then pull out the moving ring of the impeller, back cover and seal.

5 - Loosen the left and right gland screws of the pump shaft.

Remove the pump shaft, bearing and clean the oil chamber of the support.

assembly

Install the fixing bolt on the dynamic ring, static ring, back cover, gland, impeller and pump body of the seal in the reverse order of disassembly.
