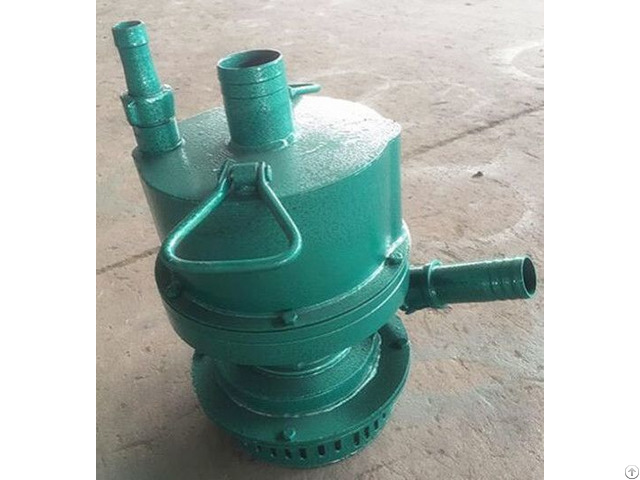

Fqw Pneumatic Submersible Sewage Centrifugal Pump - China

FQW pneumatic submersible centrifugal pump in mining is safe and reliable.

Also it can effectively improve the air quality at site.

FQW pneumatic submersible pump is widely applied to any underground mine with gas or coal dust, dangerous explosive working conditions.

FQW pneumatic submersible pump features: FQW mining pneumatic submersible pump uses compressed air as the driving force and adopts a centrifugal pump structure.

It has the advantages of small size, light weight, simple structure and easy installation and maintenance.

It is safe and reliable to be used in mines containing gas and coal dust, which is the advanced pneumatic drainage water equipment.

FQW/W series mining pneumatic submersible pump is a breakthrough in the design.

It adopts pneumatic turbine to use compressed air as the driving force, and overcomes those drawbacks like loud noise, high air consumption and low efficiency that the conventional pneumatic pump suffers, it is widely used for sewage drainage in mines.

Features:

1 - Low noise, within 40db; 2 - Low air consumption, high efficiency; 3 - Small size, light weight, compact structure and portability; 4 - Long service life, wear-resistant parts, easy maintenance.

Working conditions:

1 - When the pump dives into the water, the water surface shall not exceed connection face between the muffler and the shell; 2 - The temperature of conveying medium shall not exceed 40 degree Celsius; 3 working environment temperature (5 to 40)degree Celsius.

4 - The PH of the transport medium is within the range of 6 to 8; 5 - The maximum diameter of solid particles shall not exceed 10mm, and their volume concentration shall not exceed 2 percent; The compressed air used for power should meet the requirements of wind pressure and air volume; 7 applicable pressure range is 0.4mpa to 0.7mpa

Company Contact:

• Posted By: Kenshine Pump And Valve MFG Co.,LTD

• Phone: 862133592713

• Address: Yindu Road 1535,Minhang District, Shanghai, Shanghai , China

• Email:

• Website: http://www.kenshine-pump.com

• Business Description: Manufacturer and sales for various pumps such as centrifugal

  pump, industrial pump, chemical pump, submersible pump, self priming

  pump, diaphragm pump, electromagnetic pump, gear pump, multistage pump etc

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD is the integrated enterprise specializing in research and development and design and produce and sales of pump and valves.

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD locates in MINHANG industrial zone, SHANGHAI which is the economic trade center in China and established in 1985 - KENSHINE PUMP&VALVE MANUFACTURING CO., LTD have developed and enlarged many years, supported by scientific management, sophisticated technology, advanced equipment and strict quality system.

  Company is continuously going up as the 40% rising speed every year and is as the one of industrial manufacturer in China.

  Company had ISO certificate in 1998 and the products are according to JB/JQ20103 1998 and JB/JQ20104 1998 standard.

  The quality of products is insured by PICC.

  Company has several sales and service networks in many middle and big cities of China.

  The products are sold to domestic cities and exported oversea about 40% products.
