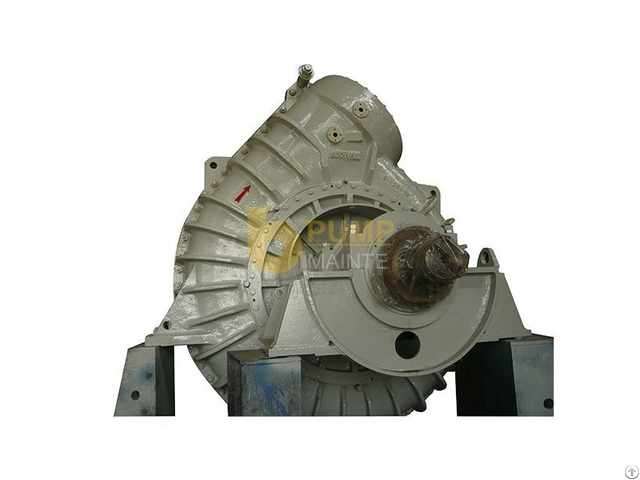

Dredging cantilever horizontal centrifugal pumps

Structural characteristics:

WN series dredging pump is a new dredging pump developed by our company on the basis of introducing advanced foreign technology, aiming at the dredging, dredging and filling requirements of rivers and lakes in China.

WN series products are single-stage single-suction cantilever horizontal centrifugal pumps, which have the characteristics of light weight, wide flow channel, strong flow capacity, strong wear resistance, strong suction capacity, excellent dredging performance and good overall shipability.

Fully meet the requirements of dredgers for mud pumps.

Dredge Pump For Sale: shijiazhuang mainte slurry pump co., ltd

The dredging pump system is mainly composed of a pump head, a reduction box, a flexible coupling, a marine transmission and a monitoring system.

The impeller, front guard plate and rear guard plate of the mud pump over-current component are all made of strong anti-wear alloy cast iron.

The hardness of the material is more than 58HRC.

The pump body is made of wear-resistant alloy steel with excellent anti-wear and pressure.

The structure is simple, easy to disassemble and repair, reduce the workload, reduce staffing and improve economic efficiency.

At the same time, we can use different metal materials to meet the requirements of use according to the requirements of users and different media conditions.

Applicable working conditions:

It is suitable for dredging and bucket wheel type ship dredging conditions, and is widely used in dredging, dredging and dredging projects in rivers, lakes, docks and coastal areas.

Product efficiency and energy saving are significant.

Strong suction capacity, deep digging and high dredging concentration.

Strong flow capacity, continuous pumping of gravel, clay and high plastic clay.

It has strong matching and can be equipped with diesel engine and generator.

Performance range:

Dischargerange: 100~850mm

Flowrange: 180~1600m3/h

Head range: 20 ~ 90m
