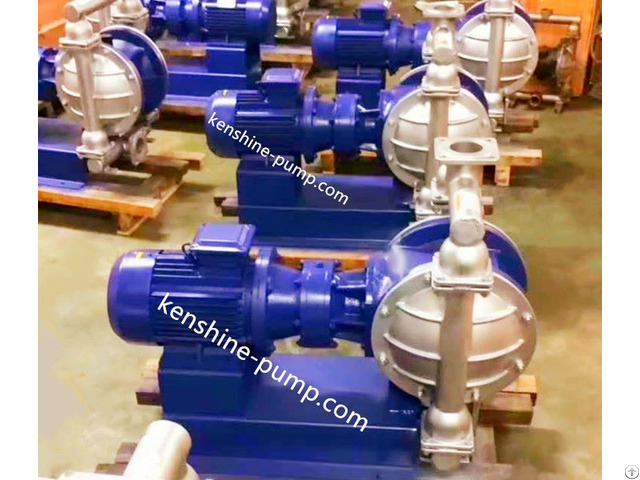

Dby Stainless Steel Electric Diaphragm Pump - China

DBY electric diaphragm pump is with XLD series cycloidal reducer as drive power.

Electric diaphragm pump is a new type of pump to replace centrifugal pump, screw pump for application in petrochemical, ceramics, metallurgy and other industries.

Pump outlet pressure : 3 KGF/cm2 .

Main application of DBY electric diaphragm pump:

1 - Various highly toxic, flammable and volatile liquids.

2 - Various strong acids, bases and corrosive liquids.

3, can transport the medium of higher temperature 150℃.

4, as a pre-stage pressure feeding device for various filter press.

5 - Hot water recovery and circulation.

6 - Loading and unloading of oil tanker, oil depot and oil products.

7 - Pump pickle jam, mashed potatoes, chocolate, etc.

8, pump suction paint, gum, pigment adhesive.

9, all kinds of porcelain glaze slurry cement grouting mortar.

10, a variety of rubber slurry latex, organic solvents, fillers.

11 - Use the pump to clear the warehouse for tankers and barges and absorb the sewage and residual oil in the warehouse.

12, hops and baking powder pulp, syrup, molasses.

13 - Pump sewage and sediment in mines, tunnels, tunnels and sewers.

14 - Suction of various special media.

Technical parameters:

Flow: 0-20m3/h;

Head: 30m;

Power: 0.37-4kw;

Speed: 1450r/min;

Caliber: 10-100mm;

Operation Temperature: -15-150 ℃;

Suction height: 3-5m.

Company Contact:

• Posted By: Kenshine Pump And Valve MFG Co.,LTD

• Phone: 862133592713

• Address: Yindu Road 1535,Minhang District, Shanghai, Shanghai , China

• Email:

• Website: http://www.kenshine-pump.com

• Business Description: Manufacturer and sales for various pumps such as centrifugal

  pump, industrial pump, chemical pump, submersible pump, self priming

  pump, diaphragm pump, electromagnetic pump, gear pump, multistage pump etc

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD is the integrated enterprise specializing in research and development and design and produce and sales of pump and valves.

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD locates in MINHANG industrial zone, SHANGHAI which is the economic trade center in China and established in 1985 - KENSHINE PUMP&VALVE MANUFACTURING CO., LTD have developed and enlarged many years, supported by scientific management, sophisticated technology, advanced equipment and strict quality system.

  Company is continuously going up as the 40% rising speed every year and is as the one of industrial manufacturer in China.

  Company had ISO certificate in 1998 and the products are according to JB/JQ20103 1998 and JB/JQ20104 1998 standard.

  The quality of products is insured by PICC.

  Company has several sales and service networks in many middle and big cities of China.

  The products are sold to domestic cities and exported oversea about 40% products.
