Cz Standard Chemical Process Pump - China

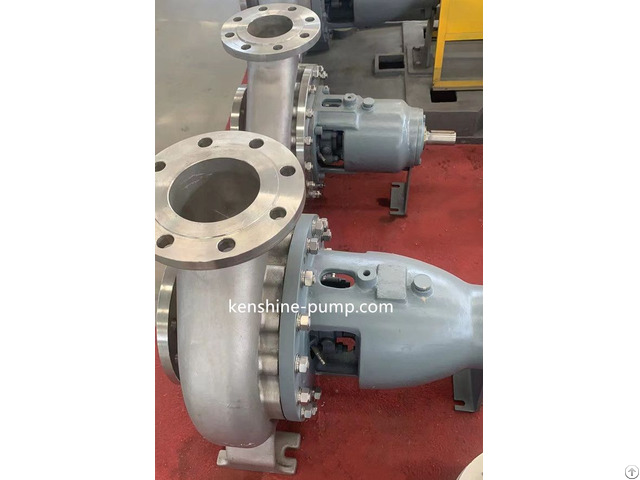

CZ standard chemical process pump

CZ series standard chemical pump is horizontal, single stage, single suction centrifugal pump; Its size and performance comply with DIN24256/ISO2858 standard.

CZ series standard chemical pump performance range includes all the performance of IH series standard chemical pump, its efficiency, cavitation performance etc.

are better than IH pump.

Pumped fluids:

Conveying low temperature or high temperature liquid; Neutral or corrosive liquid; Clean or liquid containing solid particles.

Especially suitable for: chemical and petrochemical industry; Oil refineries.

Paper mills and pulp industries; The food industry.

Performance range:

Flow rate (Q) 3.2-2000m3/h Head (H) 7-160m Working pressure (P) 2.5mpa Operating temperature (T) -80 to 300 degrees Structure:

Horizontal back door structure, pump head and motor is connected by shaft coupling, installed on the bottom plate, impeller is open, three bearings, shaft seal with external mechanical seal, cooling device, bearing body has Oil level for oil scope observation; Compact and reasonable structure.

The pump body is casted with feet support, It can withstand the loading from the pipeline and directly to the foundation, so that the pump rotor will not bend due to the pump loading, Thus, the load-bearing and mechanical seals have the best service life.

Maintenance does not need to open the pipeline connected with the pump body, as long as the bracket and the bolt of the pump body are opened, the pump body and impeller can be separated to repair the impeller.

Gland packing, single end face and double end faces mechanical seal are ok.

Pump material: Stainless steel (SS304, SS316, SS316L), duplex stainless steel (2205 or 2507), Titanium alloy etc.

Company Contact:

• Posted By: Kenshine Pump And Valve MFG Co.,LTD

• Phone: 862133592713

• Address: Yindu Road 1535,Minhang District, Shanghai, Shanghai , China

• Email:

• Website: http://www.kenshine-pump.com

• Business Description: Manufacturer and sales for various pumps such as centrifugal

  pump, industrial pump, chemical pump, submersible pump, self priming

  pump, diaphragm pump, electromagnetic pump, gear pump, multistage pump etc

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD is the integrated enterprise specializing in research and development and design and produce and sales of pump and valves.

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD locates in MINHANG industrial zone, SHANGHAI which is the economic trade center in China and established in 1985 - KENSHINE PUMP&VALVE MANUFACTURING CO., LTD have developed and enlarged many years, supported by scientific management, sophisticated technology, advanced equipment and strict quality system.

  Company is continuously going up as the 40% rising speed every year and is as the one of industrial manufacturer in China.

  Company had ISO certificate in 1998 and the products are according to JB/JQ20103 1998 and JB/JQ20104 1998 standard.

  The quality of products is insured by PICC.

  Company has several sales and service networks in many middle and big cities of China.

  The products are sold to domestic cities and exported oversea about 40% products.
