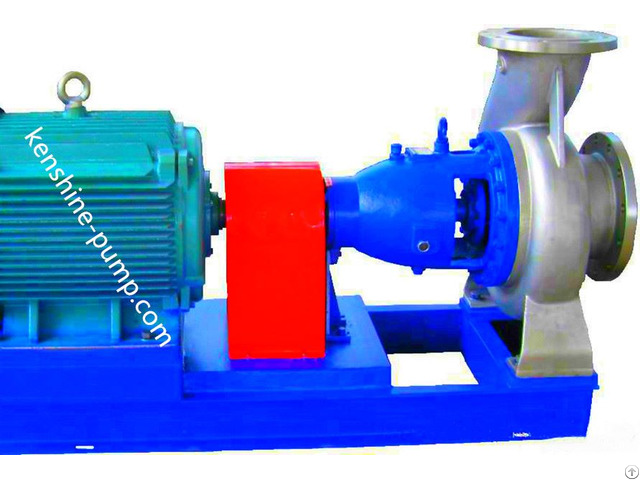

Cz Stainless Steel Chemical Process Centrifugal Pump - China

CZ standard chemical process pump is suitable for chemical and petrochemical industry, oil refinery, paper mill and pulp industry, grain industry and other sectors to transport low temperature or high temperature liquid; Neutral or corrosive liquid; Clean liquid or liquid containing solid particles.

CZ standard chemical process centrifugal pump can also be used to transport a variety of temperature and concentration of sulfuric acid, nitric acid, hydrochloric acid and phosphoric acid and other inorganic acid and organic acid, a variety of temperature and concentration of sodium hydroxide and sodium carbonate and other alkaline solution or various petrochemical liquids, organic compounds, and other corrosive liquids.

CZ standard chemical process centrifugal pump is horizontal, single-stage, single-suction centrifugal pumps, its size and function meet DIN24256 / ISO2858 standard.

CZ chemical pump function scope cover all the performance of the IH standard chemical pump, its efficiency and cavitation performance etc.

are better than model IH pump.

CZ Standard chemical process pump is the ideal pump for chemical and petroleum chemical industry, refinery, paper and pulp industry, and food industry, etc.

Performance of CZ chemical pump:

Flow (Q) 3.2-2000m3/h

Head (H) 7-160m

Operating temperature (t) -80-300 degrees

Working pressure (P) 2.5mpa

Design features of CZ pump:

The pressure acting on the shaft seal is balanced by the balance hole on the impeller.

Shaft seal can be used soft seal (cooling, or not cooling), also it can be used a variety of structures single, double end non - balance mechanical seal.

The ball bearing is durable and its diameter size is sufficient to ensure smooth operation.

The pump body of some specifications is designed as a double volute housing to balance the radial force.

Bearing rack, including shaft, impeller, packing box, etc.

form a combination of parts, so that the pump body in the maintenance need not be removed from the pipe (if the use of extended coupling, motor need not be removed).

Flange design, using PN16, PN25 two (according to the difference in materials).
