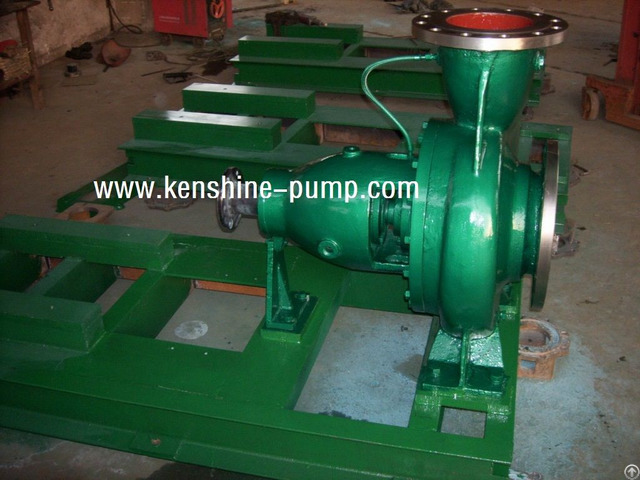

Cz Series Standard Chemical Process Pump - China

CZ series standard chemical pump is a horizontal single-stage and single-suction centrifugal pump which conforms to such standards as DIN24256, ISO2858 and GB5662-85, which is a basic product among standard chemical pumps.

It’s suitable to transfer media being low-temperature or high-temperature, neutral or corrosive, being clean or containing solid grains, or being poisonous, inflammable or explosive.

It’s mainly applied in such industries as chemical engineering, petrochemicals, steel works, power plants, papermaking, pulp, medicine, food and sugar refining.

Structural Features Pump body: adopting foot supporting structure; Impeller: closed, semi-open and full-open types; CZ series pump’s axial force is mainly balanced by the back blade or balance hole while the residual axial force is born by the bearing.

Pump cover: it works with the sealing gland to form a sealing cavity and the standard cavity dimensions can be provided with various seal types.

Shaft seal: according to different working conditions, such seal types can be adopted as packing seal, single end face mechanical seal, double end face mechanical seal, and mechanical seal in series.

Bearings: it adopts the thin oil lubrication mode and the oil level is controlled by a constant level oil cup, that fully ensuring the bearings working in a good lubrication state.

Shaft: It’s protected by a bushing to prevent the medium from contacting the shaft directly to improve the shaft’s service life.

Working conditions Medium temperature: -40 DegC to 260 DegC Up to 400 DegC when taking special measures: Flow Q=2~2400m3/h, Head: 3-200(m) Working pressure is up to 25bar Rotation speed n=1450~3600 r/min, 50Hz/60Hz Pump’s rotation direction: clockwise when viewed from the motor to the pump.
