Cwb Series Magnetic Vortex Pump - China

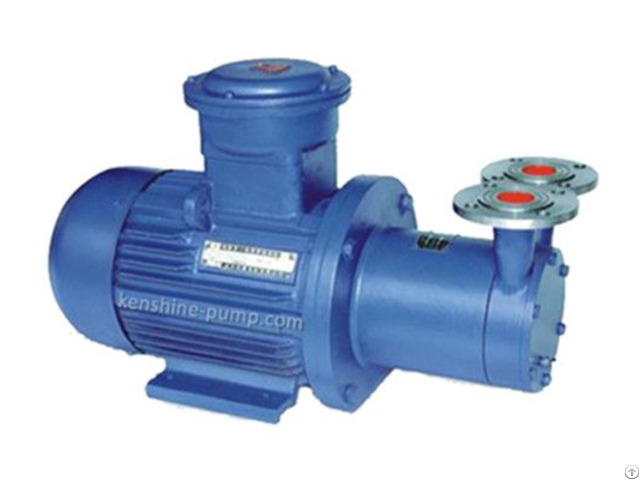

CWB magnetic vortex pump

CWB magnetic vortex pump is a new type of vortex pump which is modified and designed by our company on the basis of many years' experience in producing W, WB type vortex pump.

CWB series of pumps use magnetic transmission structure and have no shaft seal to ensure that the pump can not leak.

CWB Series pumps have the characteristics of vortex pump with small flow and high head and magnetic pump with advantage of no leakage.

The flow parts for CWB Series pumps are made of 1Cr18Ni9Ti stainless steel materials and CWB Series pump is suitable to convey inflammable, explosive, toxic and other chemical media without leakage.

Specification sheet

Model Flow rate Head Speed Motor power Efficiency Suction height Impeller Dia.

Weight m3/h (m) (r/min) (kw) (%) (m) (mm) (Kg)

CWB20-20 0.72 20 2900 0.75 22 6 65 26

CWB20-40 0.72 40 2900 1.1 18 6 90 32

CWB20-65 0.72 65 2900 2.2 15 6 105 36

CWB25-25 1.44 25 2900 1.1 26 5 75 28

CWB25-40 1.44 40 2900 1.5 24 5 90 40

CWB25-75 1.44 75 2900 4 20 5 110 55

CWB32-30 2.88 30 2900 2.2 28 5 90 38

CWB32-50 2.88 50 2900 3 26 5 100 52

CWB32-75 2.88 75 2900 7.5 22 5 120 76

CWB32-120 2.88 120 2900 11 18 4.5 140 95

CWB40-40 5.4 40 2900 4 30 4 100 70

CWB40-90 5.4 90 2900 11 26 3.5 130 105

CWB50-45 9 45 2900 7.5 30 4 110 92

CWB65-50 14.4 50 2900 15 35 3.5 120 158

Company Contact:

• Posted By: Kenshine Pump And Valve MFG Co.,LTD

• Phone: 862133592713

• Address: Yindu Road 1535,Minhang District, Shanghai, Shanghai , China

• Email:

• Website: http://www.kenshine-pump.com

• Business Description: Manufacturer and sales for various pumps such as centrifugal

  pump, industrial pump, chemical pump, submersible pump, self priming

  pump, diaphragm pump, electromagnetic pump, gear pump, multistage pump etc

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD is the integrated enterprise specializing in research and development and design and produce and sales of pump and valves.

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD locates in MINHANG industrial zone, SHANGHAI which is the economic trade center in China and established in 1985 - KENSHINE PUMP&VALVE MANUFACTURING CO., LTD have developed and enlarged many years, supported by scientific management, sophisticated technology, advanced equipment and strict quality system.

  Company is continuously going up as the 40% rising speed every year and is as the one of industrial manufacturer in China.

  Company had ISO certificate in 1998 and the products are according to JB/JQ20103 1998 and JB/JQ20104 1998 standard.

  The quality of products is insured by PICC.

  Company has several sales and service networks in many middle and big cities of China.

  The products are sold to domestic cities and exported oversea about 40% products.
