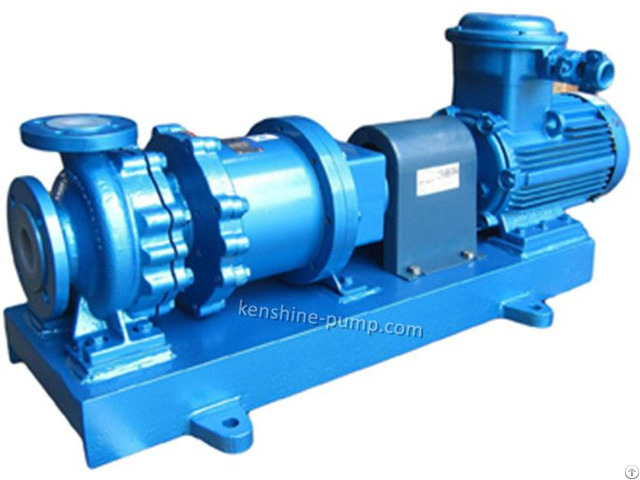

Cgf Fluorine Plastic Lining High Temperature Magnetic Pump - China

CGF no leakage fluorine plastic lining high temperature magnetic pump adopts magnetic principles.

When the motor drives the outer magnetic cylinder to rotor, the inner magnetic cylinder assembly is affected by magnetic force and rotates with impeller to discharge the fluids.

The flow parts for CGF fluorine plastic lining magnetic pump is fluorine plastic( PTFE, FEP, PFA).

The pump body is made of cast iron with fluorine plastic liner.

CGF Fluorine plastic lining magnetic pump is used to transfer strong acid, alkali, oxidant and corrosive fluids.

The pumped fluids are sealed into the spacer sleeve for no leakage.

Pump and motor is connected by shaft coupling.

Transport medium: Sulfuric acid, hydrochloric acid, hydrofluoric acid, royal water, bromide etc.

Application: Chemical industry, medicine, acid making, hydrofluoric acid, flammable, explosive, volatile, high risk industries etc.

Performance range: Caliber: 25 to 200mm Flow rate: 1.5 to 400m3/h Head: 10 to 80m Speed: 1450rpm or 2900rpm Working temperature: -20 to 160 degree Celsius.

Pump material: fluorine plastic (PTFE, FFA, FEP)

Company Contact:

• Posted By: Kenshine Pump And Valve MFG Co.,LTD

• Phone: 862133592713

• Address: Yindu Road 1535,Minhang District, Shanghai, Shanghai , China

• Email:

• Website: http://www.kenshine-pump.com

• Business Description: Manufacturer and sales for various pumps such as centrifugal

  pump, industrial pump, chemical pump, submersible pump, self priming

  pump, diaphragm pump, electromagnetic pump, gear pump, multistage pump etc

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD is the integrated enterprise specializing in research and development and design and produce and sales of pump and valves.

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD locates in MINHANG industrial zone, SHANGHAI which is the economic trade center in China and established in 1985 - KENSHINE PUMP&VALVE MANUFACTURING CO., LTD have developed and enlarged many years, supported by scientific management, sophisticated technology, advanced equipment and strict quality system.

  Company is continuously going up as the 40% rising speed every year and is as the one of industrial manufacturer in China.

  Company had ISO certificate in 1998 and the products are according to JB/JQ20103 1998 and JB/JQ20104 1998 standard.

  The quality of products is insured by PICC.

  Company has several sales and service networks in many middle and big cities of China.

  The products are sold to domestic cities and exported oversea about 40% products.
