Automatic Coupling Type Submersible Sewage Dewatering Pump - China

Submersible sewage pumps generally adopt automatic coupling (hereinafter referred to as auto coupling) installation method.

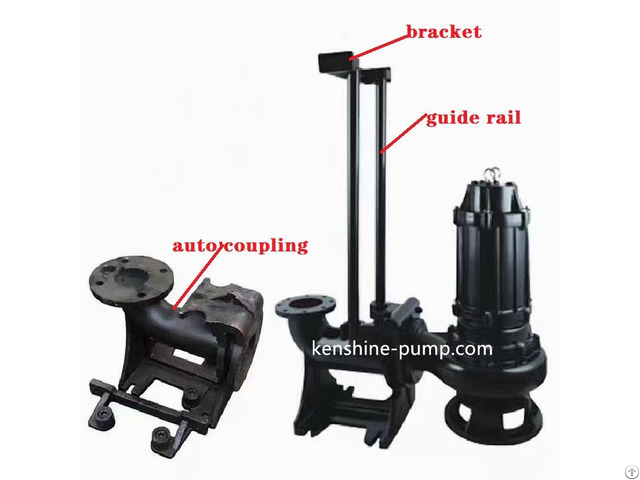

The auto coupling installation system mainly consists of a quick interface, water drainage base, guide rail, guide rail positioning bracket, etc.

During installation, the pump body and quick interface are tightly connected together by bolts.

The water drainage base is first fixed in the water tank by anchor bolts, and the quick interface drives the pump to slide down along the guide rail.

It is automatically coupled and installed with the water drainage base through the auto coupling sealing surface.

After installation, the entire pump body and motor are connected together by the pump body outlet flange and the quick interface inlet flange.

There is a rubber sealing ring between the outlet of the submersible sewage pump and the coupling interface of the auto coupling base.

The submersible sewage pump is suspended in the air through the auto coupling system and the sealing ring is compressed by its own weight to ensure reliable sealing between pipelines.

The main components of the WQ submersible sewage pump are the impeller, pump body, and submersible motor.

The water pump and motor are on the same shaft, and since the water pump is located at the bottom of the entire sewage pump, it can maximize the suction of excess sewage from the ground.

The WQ submersible sewage pump is suitable for conveying granular sewage and waste in industries such as chemical, petroleum, pharmaceutical, mining, paper industry, cement plant, steel plant, power plant, coal processing industry, as well as urban sewage treatment plant drainage system, municipal engineering, construction sites, etc.

It can also be used to pump clean water and corrosive media.

Pump can be made of cast iron or stainless steel material and equipped with high quality mechanical seal.
