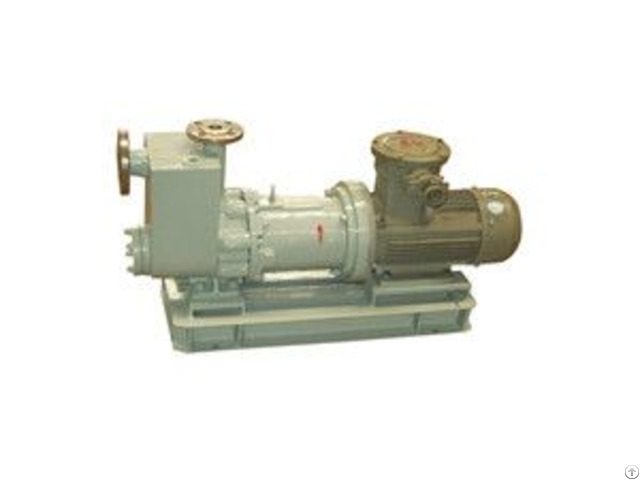

Api685 Horizontal Overhung Close Coupled Self Priming Sealless Magnetic Drive Pump - China

Standards: API 685/ ISO 15783

Operating Parameters: Capacity Q: up to 160 m³/h ( 700 gpm )/ Head H: up to 95 m ( 310 ft )/ Pressure P: up to 2.5 MPa ( 363 psi )/ Temperature T: -10 to 120 ℃ ( 14 to 248 ℉ )/ Self-priming height ：up to 4 m( 13 ft )

Features: Adopting advanced European technology / Magnetic drive design Rear pull-out design/ Close coupled/ One-piece casing with integral priming chamber, air separator and volute/ Alloy C276/Titanium alloy containment shell/ High-performance rare earth magnets(Sm2Co17)/ Optimized internal lubrication path/ Pressureless sintering silicon carbide radial and axial thrust bearings/ Options: Fiber optic leak detection Containment shell temperature probes External flush plans Power monitor Yantai Shengquan Pump Co., Ltd. was founded in 1992 - The company is a professional manufacturer which develops, manufactures, sells centrifugal pumps.

There are 240 staff and workers, including 30 technicians.

The company has two factories, with a total area of 135, 000 square meters.

The current total is USD 29 million.

There are 100 sets of equipment, including two sets of international standard closed/open mode testing stations.

The company was certified the Quality System Certification of GB/T9001: 2008/ISO9001: 200 8 Standard.

Company Contact:

• Posted By: Yantai Shengquan Pump Co., Ltd

• Phone: +86-535-4702066

• Address: No.515, Jinniushan Road, Muping District, , Yantai , Shandong , China

• Email:

• Website: http://www.sq-pump.cn

• Business Description: Yantai Shengquan Pump Co., Ltd. was founded in 1992 - The company is a professional manufacturer which develops, manufactures, sells centrifugal pumps.

  There are 240 staff and workers, including 30 technicians.

  The company has two factories, with a total area of 135, 000 square meters.

  The current total is USD 29 million.

  There are 100 sets of equipment, including two sets of international standard closed/open mode testing stations.

  The company was certified the Quality System Certification of GB/T9001: 2008/ISO9001: 200 8 Standard.

  The company is a member of China General Machinery Industry Association Pump Association.

  This company is a high quality supplier to SINOPEC, CNOOC, CHEMCHINA, CSECE, etc.
