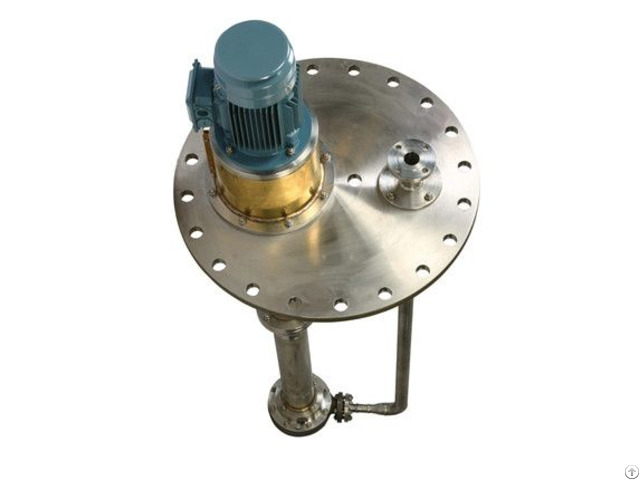

Api610 Vs4 Long Shaft Vertical Sump Pump - China

Standards: ISO 13709/API 610(VS4) Operating Parameters: Capacity Q: up to 900/400 m³/h ( 3960/1760 gpm )/ Head H: up to 135/100 m ( 443/328 ft )/ Pressure P: up to 1.6 MPa ( 232 psi )/ Temperature T: -20 to 120 ℃ ( -4 to 248 ℉ )

Features: LY used closed impeller, LYO used open impeller/ Modular and flexible design/ Multiple shaft sealing options: packing, single or double mechanical seal/ Sleeve bearings are available in various materials : PTFE, carbon, silicon carbide(dependent on pumped liquid)/ Self-lubricated or external flushing sleeve bearings/ Column lengths to 7 m( 23ft ), suction pipe available/ Pump casing flanges according to ANSI B16.5- Other flange standards upon request/ Heavy-duty thrust bearings with axial adjustment above baseplate level, grease lubricated thrust bearings/ Discharge separate from the shaftline/ Optional basket strainer

Company Contact:

• Posted By: Yantai Shengquan Pump Co., Ltd

• Phone: +86-535-4702066

• Address: No.515, Jinniushan Road, Muping District, , Yantai , Shandong , China

• Email:

• Website: http://www.sq-pump.cn

• Business Description: Yantai Shengquan Pump Co., Ltd. was founded in 1992 - The company is a professional manufacturer which develops, manufactures, sells centrifugal pumps.

  There are 240 staff and workers, including 30 technicians.

  The company has two factories, with a total area of 135, 000 square meters.

  The current total is USD 29 million.

  There are 100 sets of equipment, including two sets of international standard closed/open mode testing stations.

  The company was certified the Quality System Certification of GB/T9001: 2008/ISO9001: 200 8 Standard.

  The company is a member of China General Machinery Industry Association Pump Association.

  This company is a high quality supplier to SINOPEC, CNOOC, CHEMCHINA, CSECE, etc.
