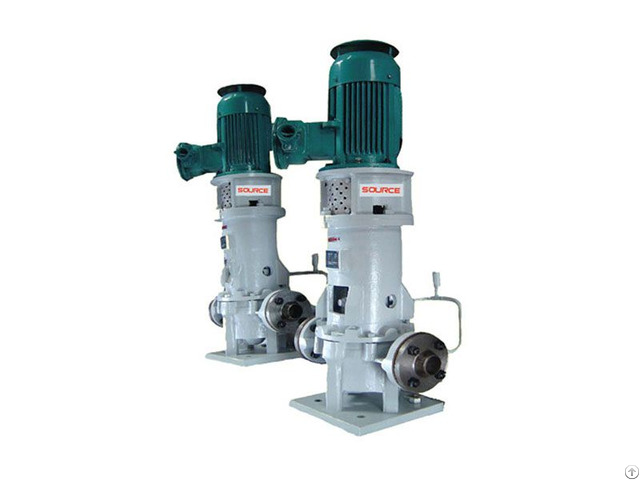

API610 OH3 single stage, single suction, radi ally split, vertical centrifugal pipeline pump

API 610 Standard Pump

API610 VS3 vertical single centrifugal pump

Instruction

The SOG series is single stage, single suction, radi ally split, vertical centrifugal pipeline pump, which is designed in accordance with standard of API610 and AP1682 -

Features

The SOG series pump and motor share the shaft with a low height, and well stability .

The bearing bracket between pump and mo tor of the SOG series can be used under high temperature and importance applications.

Compared to horizontal pump with the same performance, vertical inline pump covers small area, easily connecting, saving the cost.

Impeller, pump casing and cover with interchangeable sea ling ring, shaftseal with sleeve, easy to maintain, save spare parts cost.

The pump casing with large than 80mm-diameter (including 80mm) isdesigned double volute which can balance the radial force and reduce the vibration, and stable operating.

Pump cover has the function of cooling and heat preservation Which canbe used for pumping mediums with special requirements, pump cover with vent plug, to vent the air in pipe line or pumps before operation.

Suitable dimension of sealing housing, use packing or various of mechanical seal, good interc hangea bility, low cost of size deviation, equipped with cooling, flushing sealing liquid system.

The connection and the standard of suction and discharge flange can be varied with customer's requirements in rated pressure level and dimension.

The pump rotation direction is CW viewing from the driven end.

Performance Data

Flow Range： Q up to 600m3/h

Head Range： H up to 120m

Operating Pressure: P up to 50 Bar

Liquid Temperature： T up to 250°C

E.G. SOG 150-250

SOG — Vertical Pipeline Pumps

150 — Flange diameter in inlet and outlet

250 — Impeller nominal diameter

Applications

@ Petrochemical @ Refinery

@ General industrial process @ Water supply and treatmen t

@ Pipeline pressurization @ Marine pump
