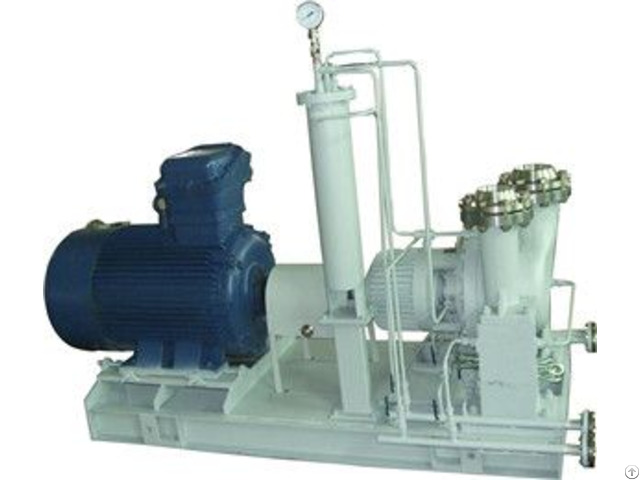

Api610 Oh2 Horizontal Overhung Centerline Mounted Centrifugal Oil Pump - China
price: contact company for price
Standards: ISO 13709/API 610 (OH2/BB2) Operating Parameters: Capacity Q: up to 500 m³/h ( 2200 gpm )/ Head H: up to 300 m ( 985 ft )/ Pressure P: up to 6.3 MPa ( 910 psi )/ Temperature T: -45 to 450 ℃ ( -49 to 842 ℉ ) Features: Standard modularization design/ The rear pull-out design enables the bearing pedestal including impeller and shaft seal to be removed with the volute casing left in position/ Shaft sealed by cartridge mechanical seal +API flushing plans.
ISO 21049/API682 seal chamber accommodates multiple seal types/ AY(S) Top-top nozzle configuration, AYP End suction, S represents double-suction impeller/ High-efficiency hydraulics/ The pump rotation is Counterclockwise when looking from the drive end/ Jack screws (motor side) for an easier alignment setting/ Bearing lubrication and cooling options: Oil mist /Fan cooling/Water cooling
Company Contact:
- Posted By: Yantai Shengquan Pump Co., Ltd
- Phone: +86-535-4702066
- Address: No.515, Jinniushan Road, Muping District, , Yantai , Shandong , China
- Email:
- Website: http://www.sq-pump.cn
Published date: April 25, 2019
- Business Description: Yantai Shengquan Pump Co., Ltd. was founded in 1992 - The company is a professional manufacturer which develops, manufactures, sells centrifugal pumps.
There are 240 staff and workers, including 30 technicians.
The company has two factories, with a total area of 135, 000 square meters.
The current total is USD 29 million.
There are 100 sets of equipment, including two sets of international standard closed/open mode testing stations.
The company was certified the Quality System Certification of GB/T9001: 2008/ISO9001: 200 8 Standard.
The company is a member of China General Machinery Industry Association Pump Association.
This company is a high quality supplier to SINOPEC, CNOOC, CHEMCHINA, CSECE, etc.
