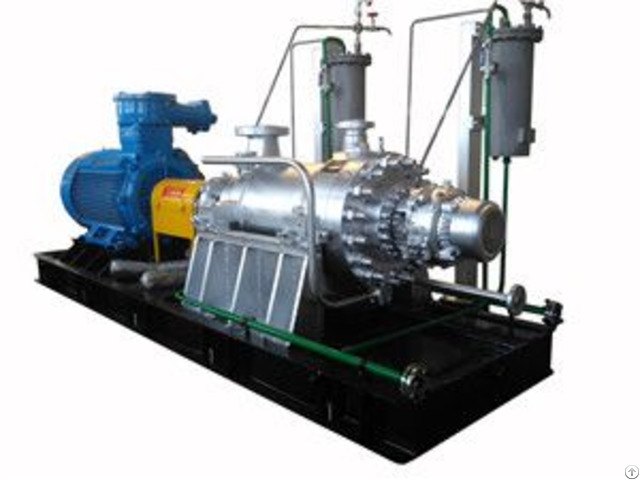

Api610 Bb5 High Temperature Preessure Radially Split Barrel Multistage Pump - China

Standards: ISO 13709/API 610(BB5) Operating Parameters: Capacity Q: up to 1000 m³/h ( 4400 gpm )/ Head H: up to 2500 m ( 8200 ft )/ Pressure P: up to 25 MPa ( 3626 psi )/ Temperature T: -30 to 450 ℃ ( -22 to 842 ℉ )

Features: Diffuser case construction / Single or double-suction, first stage impeller/ Inline or back-to-back design/ Balance drum and sleeve made from hardened stainless steel forgings/ Heavy duty forged or casted steel barrel and discharge cover/ Shaft sealed by cartridge mechanical seal +API flushing plans.

ISO 21049/API682 seal chamber accommodates multiple seal types/ Roller bearing and ball thrust with oil flinger lubrication system, Sleeve radial and tilting pad thrust bearings with pressure lubrication system/ Axial thrust balancing device with balance drum/ Renewable casing wear rings and sleeves/ Jack screws (motor side) for an easier alignment setting

Company Contact:

• Posted By: Yantai Shengquan Pump Co., Ltd

• Phone: +86-535-4702066

• Address: No.515, Jinniushan Road, Muping District, , Yantai , Shandong , China

• Email:

• Website: http://www.sq-pump.cn

• Business Description: Yantai Shengquan Pump Co., Ltd. was founded in 1992 - The company is a professional manufacturer which develops, manufactures, sells centrifugal pumps.

  There are 240 staff and workers, including 30 technicians.

  The company has two factories, with a total area of 135, 000 square meters.

  The current total is USD 29 million.

  There are 100 sets of equipment, including two sets of international standard closed/open mode testing stations.

  The company was certified the Quality System Certification of GB/T9001: 2008/ISO9001: 200 8 Standard.

  The company is a member of China General Machinery Industry Association Pump Association.

  This company is a high quality supplier to SINOPEC, CNOOC, CHEMCHINA, CSECE, etc.
