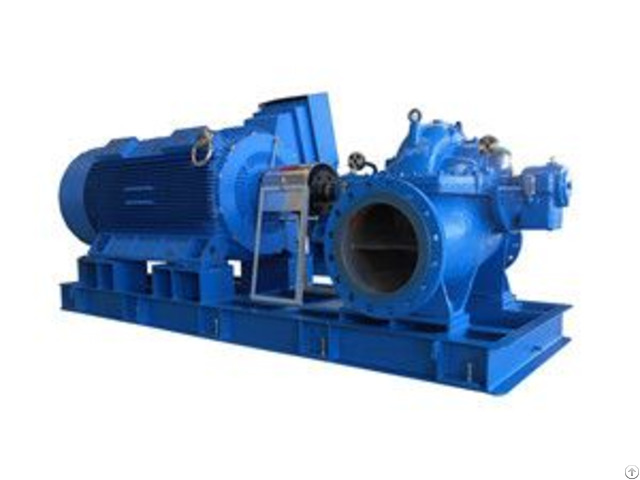

Api610 Bb1 Horizontal Foot Mounted Single Case Stage Axially Split Chemical Pump - China

Standards: ISO 13709/API 610(BB1)

Operating Parameters: Capacity Q: up to 10000 m³/h ( 44030 gpm )/ Head H: up to 180 m ( 590 ft )/ Pressure P: up to 6.3 MPa ( 915 psi )/ Temperature T: -20 - to 160 ℃ ( -4-320 ℉ )

Features: The removal of the upper pump part is easy to maintain(no need to remove inlet and outletpipings)/ The pump shaft runs in oil lubricated rolling bearings with the rotor located by the non drive end bearing which also accommodates any residual axial thrusts from the hydraulically balanced impeller.

/ The shaft can be reversed to allow the pump to be driven from either side.

/ Seal chamber accommodates packing and multiple mechanical seal types.

/ Pump casing flanges according to GB/T9113.1-2010 PN25 - Other flange standards upon request/ Coupling with spacer simplifies the access to thebearing frame and the seal chamber (driving end).

/ Jack screws (motor side) for an easier alignment setting

Company Contact:

• Posted By: Yantai Shengquan Pump Co., Ltd

• Phone: +86-535-4702066

• Address: No.515, Jinniushan Road, Muping District, , Yantai , Shandong , China

• Email:

• Website: http://www.sq-pump.cn

• Business Description: Yantai Shengquan Pump Co., Ltd. was founded in 1992 - The company is a professional manufacturer which develops, manufactures, sells centrifugal pumps.

  There are 240 staff and workers, including 30 technicians.

  The company has two factories, with a total area of 135, 000 square meters.

  The current total is USD 29 million.

  There are 100 sets of equipment, including two sets of international standard closed/open mode testing stations.

  The company was certified the Quality System Certification of GB/T9001: 2008/ISO9001: 200 8 Standard.

  The company is a member of China General Machinery Industry Association Pump Association.

  This company is a high quality supplier to SINOPEC, CNOOC, CHEMCHINA, CSECE, etc.
