All Metal Desulfurization Pump For Fgd Pumps - China

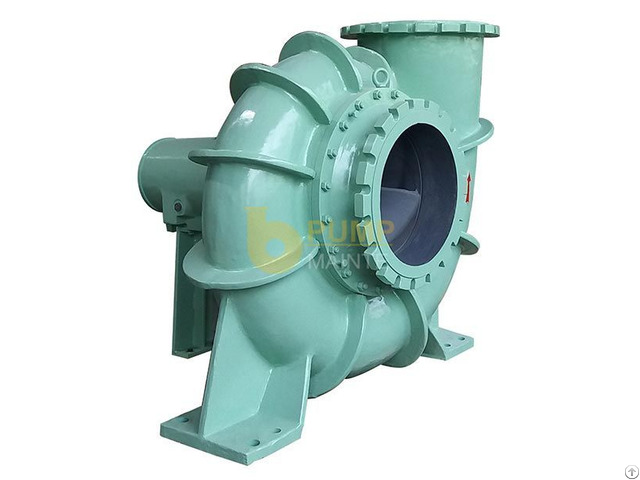

All-Metal Desulfurization Pump for FGD pumps

Structure Characteristics

The pump restricting parts adopt the advanced flow simulation technology to guarantee the reliable pump design and the high operating efficiency.

The anti-corrosion & anti-wear metal materials which are specifically developed for FGD pumps have been proved by the practice that they can ensure the long-life pump operation.

Through adjusting the bearing components to change the impeller position in the pump chamber all-time high-efficient operation of the pump can be achieved.

The pump is characterized by the back knock-down structure which is simple and advanced.

It is easy to maintain and repair and it is on need dismantling inlet and outlet water pipes.

The containerized mechanical seal specially used for the desulphurization process is adopted and its operation is reliable.

Application

It is suitable for flue gas desulfurization of coal-fired units in steel mills such as sintering flue gas, coking flue gas, heating unit and chemical self-sufficient power plant.

As main circulation pump, spoiler pump, etc.

used in lime gypsum method, ammonia method, double alkali method, magnesium method。

Performance range

Discharge range: 40 ~ 500mm

Flow range: 8~3200m3/h

Head range: 10 ~ 42m

Flue Gas Desulfurization Supplier: shijiazhuang mainte slurry pump co., ltd

TL FGD Pump Parameters

TL Pump Code Flow Q(m3/h) Head H(m) Rotating speed n(r/min) Efficiency η(%) NPSHr(m) Discharge diameter(mm) Suction diameter(mm)

40TL-250 15～50 25～90 2900 40～55 2.0～4.0 40 65

40TL-250 10～35 9～23 1450 42～53 1.0～3.0 40 65

65TL-200 45～120 16～60 2900 55～73 2.0～4.5 65 80

65TL-200 20～45 8～18 1450 50～53 1.0～3.2 65 80

65TL-315 50～130 43～85 2900 50～67 3.5～5.7 65 80

65TL-315 33～110 16～40 1450 51～66 1.0～4.1 65 80

65TL-400 40～130 22～60 1450 52～63 0.5～2.0 65 80

65TL-400 25～80 12～27 960 50～62 0.5～2.0 65 80

80TL-315 40～128 17～35 1450 55～72 0.5～2.0 80 100

80TL-315 25～80 8～17 960 53～69 1.0～3.0 80 100

100TL-315 52～150 16～38 1450 53～74 2.0～3.5 100 125

100TL-315 24～110 6～16 960 50～69 0.5～1.0 100 125

100TL-400 55～172 16～60 1450 51～72 2.0～3.5 100 125

100TL-400 50～130 11～27 960 52～69 1.1～2.1 100 125

125TL-500A 140～220 18～39 960 61～72 1.5～3.0 125 150

150TL-500A 180～310 18～37 960 60～73 0.5～1.9 150 150

200TL-500A 400～650 18～35 960 75～83 0.5～3.1 200 200

250TL-500A 450～820 18～36 960 76～83 0.5～3.5 250 250

300TL-500A 850～1200 18～32 960 77～84 4.1～6.4 300 300

350TL-500A 1200～1850 16～30 960 77～88 5.0～6.9 350 350

350TL-630 1270～1900 15～27 725 80～83 2.8～6.5 350 350

400TL-500A 2000～2600 14～28 960 80～87 2.0～7.3 400 400

500TL-630 2800～3600 22～40 960 79～85 2.0～6.7 500 500

500TL-630 2000～2800 14～22 725 75～85 3.1～6.0 500 500
