14x12x22 Mission Xp Blender Pump And Oil Sand Mixing - China

Design Features: √ Full-open wide impeller.

√ Long life no adjustment mechanical seal available for near zero leakage.

√ Thick, concentric casing with replaceable casing wear pad.

√ Hard iron and high chrome alloy material optional.

√ Large power to ensure large flow rates and head pressure up to 500ft.

√ Small footprint design is versatile for mobile and stationary application.

√ Working for fracking industrial standard and blending application.

√ Each casing is approved pressure test prior to delivery.

√ Heat treatment was done to improve the hardness and wear-resistance to ensure a longer working life.

√ Shaft sleeves are made by 416SS and ceramic coating to protect shaft from abrasive fluids for extra life.

√ Mechanical seals can be Tungsten-Tungsten, Tungsten-Silicone, or Silicone-Carbide, all with highly polish sealing face and piton bellow and stainless steel springs.

√ 100% compatible with NOV™ Mission™ Magnum™ XP, MCM™ XL series and current market offerings.

√ The pumps can be unitized with Ex-proof electric motors, diesel engines in-line or over-belt driven configuration.

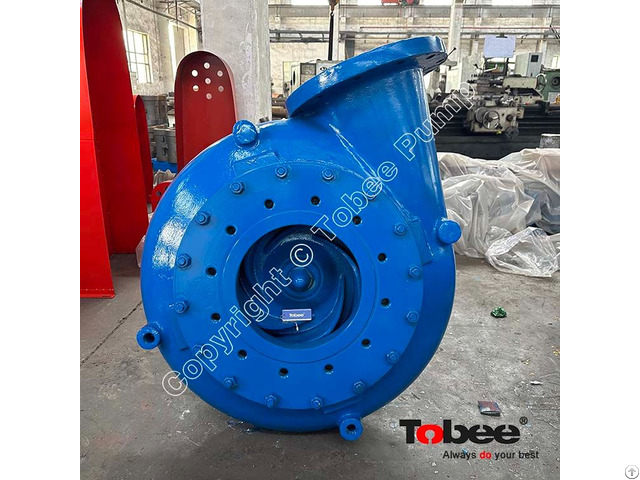

Bare Shaft Mission XP Blender Pump Information: • BT-650120009/ 14 x 12 x 22 Hard Iron Centrifugal Pumps, Mechanical Seal

• BT-650120010/ 14 x 12 x 22 High Chrome Centrifugal Pumps, Mechanical Seal

• BT-666001001/ 12 x 10 x 23 Hard Iron Centrifugal Pumps, Mechanical Seal

• BT-666001007/ 12 x 10 x 23 High Chrome Centrifugal Pumps, Mechanical Seal

• BT-666001005/ 8 x 6 x 18 Hard Iron Centrifugal Pumps, Mechanical Seal

• BT-666001006/ 8 x 6 x 18 High Chrome Centrifugal Pumps, Mechanical Seal
