Low Speed High Torque Radial Piston Hydraulic Motoryjmef2 - China

Radial Piston Motor

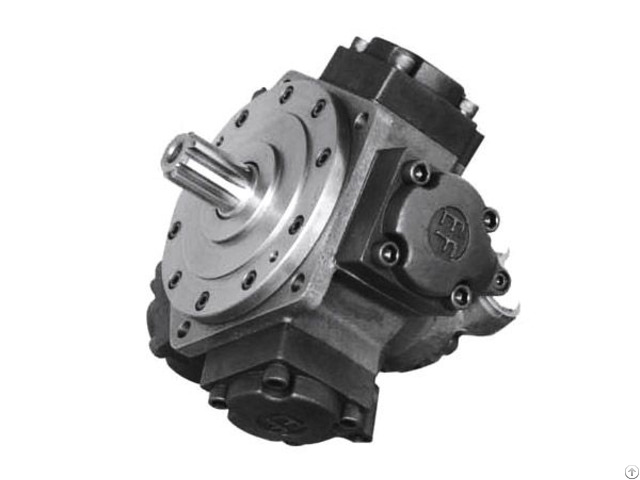

YJMDN is one kind of low speed high torque radial piston hydraulic motor.

It can be widely applied in petroleum industry, chemical industry, mining, shipping, constructing machinery, especially for plastic injection molding machinery, hydraulic winch, transmission etc.

Technical parameters:

Type Displacement (ml/r) Pressure(Mpa) Rated Torqu (N.

m) Rated Torqu (N.

m) Speed Range (r/min) Rated Rotational speed (r/min) Weight (kg)

Rated Pressure Max Pressure

YJMEF2-100 113 25 32 427 17 15-1250 ≤900 28

YJMEF2-150 159 25 32 601 24 15-1250 ≤900 28

YJMEF2-175 176 20 25 532 27 15-1000 ≤700 28

YJMEF2-200 207 20 25 626 31 10-800 ≤600 28

YJMEF2-250 235 16 20 568 36 10-630 ≤450 28

YJMEF2-280 276 16 20 668 42 10-500 ≤350 28
