Hydraulic Steering Units - China

This is Hanjiu Hydraulic from Shijiazhuang Hanjiu Technology Co., Ltd, we mainly produce Hydraulic orbitrol steering.

Our orbitrol steering can widely used for kinds of Agricultural equipments like: Agricultural harvesters, tractors for John Deere, New Holland, Case, Class, JCB etc.

Our Hydraulic steering unit can replace Danfoss, Eaton, M+S, Parker, White series 1 - Our Hydraulic orbitrol steering can replace Danfoss, Eaton, M+S, Parker, White seriesGood day for you.

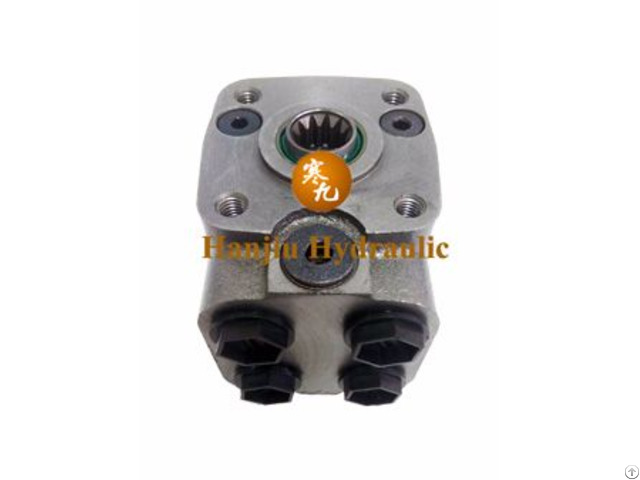

Displacement: 80/100/125/160/200/400/50 0/630/800/1000 cc 101S series hydraulic steering control unit 1 - The same function of the 101 series

2 - Including integrated valve (relief valve and checkproof valve)

3 - Replace Danfoss (ospc), M+S (HKU/4) series.

4.101S Hydraulic steering unit is widely used in the steering control system such as the steering system of many kinds of industrial and agricultural

mobile machinery forklift, loader, roadroller, tractor, comebine harvester, etc.

5 - We produce the products match with the OEM number of all machines.

Parameters Series

101S-*-***-**-*

Function code 1, 2, 4 1, 4

Displacement (mL/r) 50 63 80 100 125 160 200 250 280 315 400

Rated Flow (L/min) 5 6 8 10 12.5 16 20 25 28 32 40

Max.

input pressure(Mpa) 16

Relief Valve Pressure Settings ( MPa) 06, 07, 08, 10, 12, 14, 15, 16

Shock Valve Pressure Settings ( MPa) 12, 13, 14, 16, 18, 20, 21, 22

Max.

cont.

back pressure 2.5

Weight(kg) 5.75 5.81 5.89 5.96 6.1 6.3 6.5 6.73 6.91 7.1 7.5

Dimension L (mm) 130 132 134 137 140 145 150 156 161 166 176 Hydraulic steering unit applications:

Construction Machinery

Agriculture Machinery

Heavy-Duty Equipment

Forestry Machinery

Mining Equipment

Company Contact:

• Posted By: Shijiazhuang Hanjiu Technology Co.,Ltd

• Phone: +8631168123061

• Address: No.368 Youyi Street, Xinhua District, Shijiazhuang , Hebei , China

• Email:

• Website: https://www.hjhydraulic.com

• Business Description: Hanjiu Technology, as a professional manufacturer of hydraulic products, started from 2010, is the first plant to produce and export hydraulic orbital motors, steering units in North of China, annual production over 300, 000pcs.
