Hydraulic Steering Units 060 - China

This is Hanjiu Hydraulic from Shijiazhuang Hanjiu Technology Co., Ltd, we mainly produce Hydraulic orbitrol steering.

Our orbitrol steering can widely used for kinds of Agricultural equipments like: Agricultural harvesters, tractors for John Deere, New Holland, Case, Class, JCB etc.

Our Hydraulic steering unit can replace Danfoss, Eaton, M+S, Parker, White series 1 - Our Hydraulic orbitrol steering can replace Danfoss, Eaton, M+S, Parker, White seriesGood day for you.

Displacement: 80/100/125/160/200/400/50 0/630/800/1000 cc Product Description

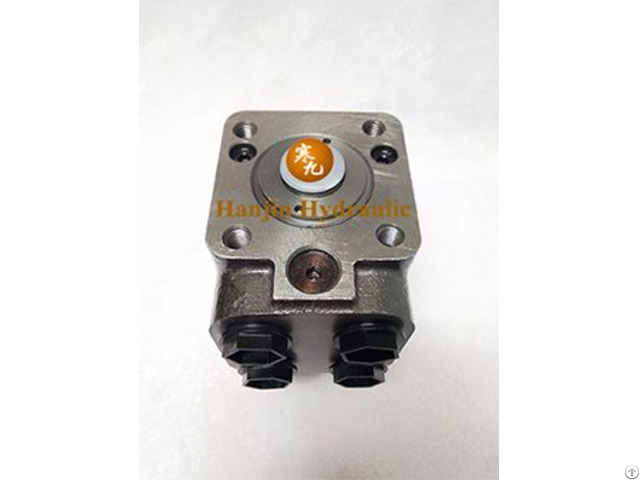

060 integral series power steering units

060 series PSU incorporated the inlet check valve, safety valve, internal check valve, cylinder port shock valve and anti-cavitation valve.

The design is more compact and convenient.

Features

Incorporated five valves into the PSU, So it is more compact and convenient

Low hydraulic noise

Special casting design for low pressure drop.

3 basic systems-open center, closed center and load sensing

Displacement: 50~500 ml/r Main specification data

Max.

System pressure 16MPa

Max.

Back pressure 2.1MPa

Input torque1.7~2.5Nm

Max.

System operating temperature93º C

Recommended oil filtrationISO 19/16 Function of the incorporated valve

Inlet safety valve: Limits maximum pressure drop across the PSU to protect the steering circuit.

Cylinder port shock valve: Protects hoses against pressure surge created by ground forces on the cylinder axle.

Anti- cavitation valve: Protects steering circuit against vacuum (cavitation) conditions.

Inlet check valve: Prevents oil from returning through the PSU when pressure on the cylinder side is greater than the inlet side.

It prevents steering wheel kick.

Internal check valve: Converts the PSU to a hand operated pump for limited manual steering.

displacement (ml/r) 50 63 80 100 125 160 200 250 315 400 500

L(mm) 137.5 139.5 139.5 142 150 150 155 161 171 181 193 Hydraulic steering unit is widely used in the steering control system such as the steering system of many kinds of industrial and agricultural

mobile machinery forklift, loader, roadroller, tractor, comebine harvester, etc.

We produce the products match with the OEM number of all machines.

Company Contact:

• Posted By: Shijiazhuang Hanjiu Technology Co.,Ltd

• Phone: +8631168123061

• Address: No.368 Youyi Street, Xinhua District, Shijiazhuang , Hebei , China

• Email:

• Website: https://www.hjhydraulic.com

• Business Description: Hanjiu Technology, as a professional manufacturer of hydraulic products, started from 2010, is the first plant to produce and export hydraulic orbital motors, steering units in North of China, annual production over 300, 000pcs.
