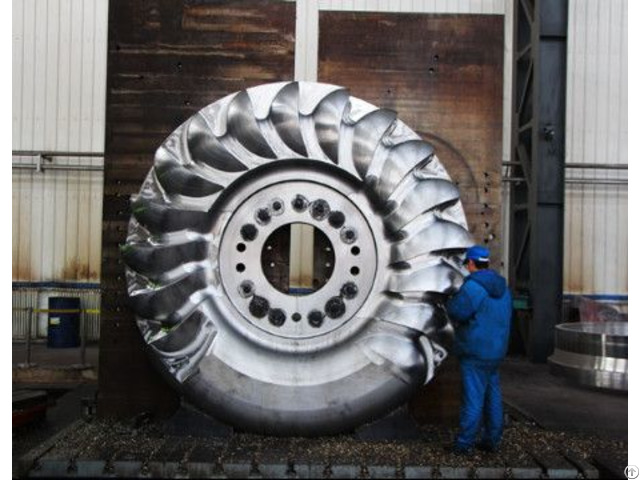

Forged Entire Cnc Machined Pelton Runner - China

Project Basic Information

Project Name: Minas-San Francisco HPP

Project Location: Ecuador

Pelton runner pitch diameter: 2460mm.

OD: 3179mm

Net Weight: 13300KG

Buckent No.

21

Output: 91.6MW

Product Introduction

1 - Brief introduction for Forged Integrally +100% CNC Machined Pelton Turbine Runner

Forging could considerably improve metal’s organizational structure and mechanical property.



Forging offers uniformity of composition and structure.

Forging results in metallurgical recrystalisation and grain refinement as a result of the thermal cycle and deformation process.

This strengthens the resulting steel product particularly in terms of impact and shear strength.

Forged steel is generally stronger and more reliable than castings of same material due to the fact that the grain flows of the steel are altered, conforming to the shape of the part.

Getai Hydropower is Pelton Turbine Experiment, Francis Turbine Diagram, Francis Turbine Working, Pelton Turbine For Sale factoty.

Performance comparison table of forging parts and casting parts

Company Contact:

• Posted By: Shenyang Getai Hydropower Equipment Co.,Ltd

• Phone: +86-24-89305318

• Address: No.205,HongHui Road,Yuhong District, Shenyang , Liaoning , China

• Email:

• Website: http://www.gthec.cn/

• Business Description: SHENYANG GETAI HYDROPOWER EQUIPMENT CO., LTD. is located in Shenyang City, the old Northeastern industrial base of China.

  GETAI is a high technology enterprise established in 1992, aiming to supply integral solution for new and old hydropower plants.

  Its main products include high efficient Pelton turbine, Francis turbine, Kaplan turbine and relevant accessories.

  Shenyang Getai Hydropower Equipment Co., Ltd main products: Pelton Turbine, Francis Turbine, Kaplan/Tubular Turbine, Pelton Turbine Generator, Francis Turbine Generator, Double Francis Turbine, Pelton Turbine Formula, welcome to our factory!

  Our company covers an area of 30, 000 square meters, employs more than 140 people, more than 20 professionals and technical personnel, we has formed a unique technological advantage in R&D, design and manufacturing, We provide pelton turbine experiment, francis turbine diagram, francis turbine working and so on.

  We established an overseas technology research and development center in Canada in 2015 - Through the use of CFD computer dynamic water flow simulation system, it could comprehensively analyzes and calculates the technical parameters of the newly-built power station and the actual operation status of the upgraded power station, providing users with customized design to maximizing the generation capacity of the power station.

  Turbine core components are subjected to force analysis using finite element FEA technology, and weak links are reasonably strengthened.

  Castings are manufactured using AOD, VOD ultra-low carbon refined molten steel, and the service life is extended on the basis of ensuring the safe use of the product.

  We have dozens of high precision lathe, including φ8m, φ6.3m, φ2.5m, M4000H2, GMB2540, TK6920, TK6516, TK6513 and multi-axis CNC boring and milling machining centers.

  Getai manufactured the first entirely CNC machined forged Pelton runner as well as entirely CNC machined forged Francis runner in China.

  Getai Hydropower has provided advanced design and renovation solutions for many new and old hydropower stations at home and abroad.

  The products are distributed to more than 30 provinces, cities, autonomous regions and more than 20 countries abroad.

  We advocate green production, people-oriented, and honest management.

  On the basis of several years of turbine manufacturing experience and excellent technology with continious upgrading, GETAI will offer the best products and service to each customer.
