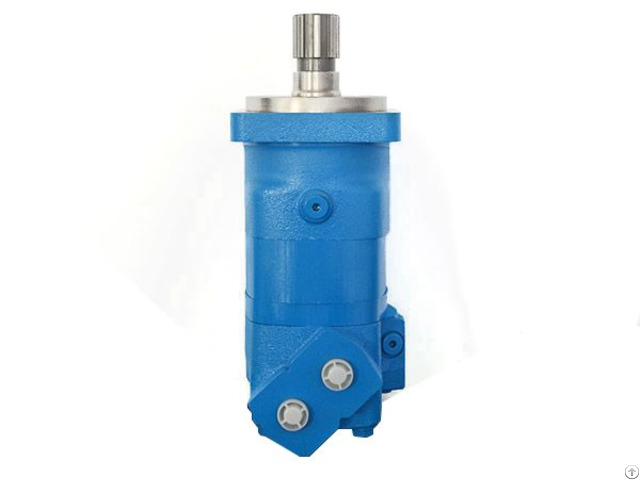

Bm6 Series Orbit Hydraulic Motor - China

Hydraulic Motor

Disc Valve Motor

BM6 is a large volume, disc valve, high pressure motor, with radial ball-bearings design, and can bear greater load, and has higher torque than BM5.

Characteristic features：

The motor can be used in high pressure, so it’s max.

Torque is higher than BM5 motor.

Advanced design in disc distribution flow, which can provide improved performance at low speed.

The valve can automatically compensate for the wear, so the volumetric efficiency is high.

Double taper roller bearings permit high radial loads.

The motors can be used on heavier vehicles in traction drive applications.

A variety of connection types of flange, output shaft and oil port.

MainSpecification

Displacement(ml/r) 195 245 310 390 490 625 800 985

Flow(LPM) Cont.

150 150 150 150 150 150 150 150

Int.

170 210 225 225 225 225 225 225

Speed(RPM) Cont.

776 615 484 385 308 242 186 155

Int.

865 836 699 572 453 354 275 230

Pressure(MPa) Cont.

20.5 20.5 20.5 20.5 17 14 12 12

Int.

31 31 31 31 27.5 17 14 14

Torque(N*m) Cont.

572 733 928 1156 1213 1331 1378 1565

Int.

852 1176 1356 1633 1878 1368 1645 1877

Note:

1 - Intermittent means the entrance of maximum pressure; continuous working pressure means the differential pressure.

2 - Motor should not work under the highest pressure and the maximum speed.

3 - The running time should not exceed 10% under intermittent working conditions.

4 - The Maximum working temperature is 80℃.

5 - The maximum allowable back pressure is 10Mpa, but the recommended back pressure should not exceed 5MP, a leaking pipes is needed when exceeding.

6 - One hour running time under 40% of maximum working pressure is recommended before full capacity working.

7 - Recommending N68 anti-wear hydraulic oil, viscosity 37-73cSt, cleanliness ISO 18/13
