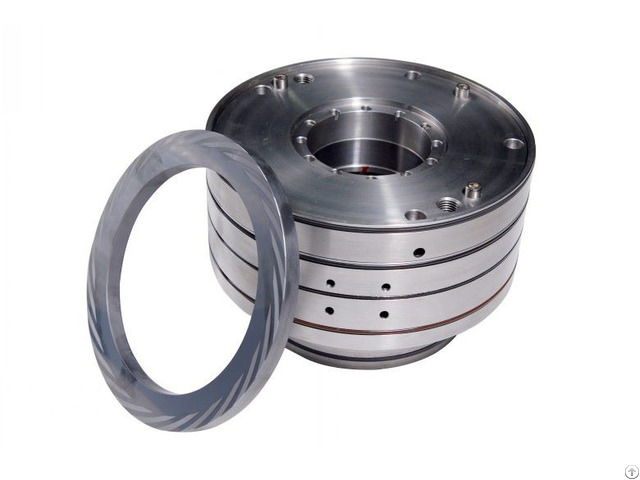

Ytg801 Non Contact Operation Grooved Ring Low Energy Dry Gas Seal For Centrifugal Compressor - China
price: contact company for price
Operating Conditions:
Pressure: 0~15.0MPa
Temperature: -104~280℃
Rotary speed: 1000~18000r/min
Linear speed: less than 160m/s
Applicable medium: media without pollution (air, CO2, N2, steam, etc.
)
Product material: stainless steel (304, 316, 2205), rubber (viton, NBR, HNBR, EPDM), graphite, carbon.
Design/Structure:
Adopt the advanced fluid dynamic pressure groove to assure the reliability.
Light material for rotary ring can reduce the sealing effect on the dynamic performance of the compressor rotor.
The labyrinth seal can guarantee the leakage of the medium not taken directly to the atmosphere
Non-contact operation
The cartridge seal is easy for installation and maintenance
Competitiveness:
High-performance, competitive price, prompt delivery and best service
Longer service life and low energy consumption
Can be customized according to customer’s requirement
More than 20 years' designing and manufacturing experience
More than 20 years’ vendor of Sinopec and PetroChina
Get the ISO9001, ISO14000 and ISO18000 certificate
Awarded a number of utility patents in researching and designing seals
Company Contact:
- Posted By: Chengdu Yitong Seal Co., Ltd.
- Phone: +86 13402858953
- Address: Xingguang Road (west) No.26, Economic and Technological Development Zone, Chengdu , Sichuan , China
- Email:
- Website: http://www.cdytseal.com
Published date: January 19, 2017
- Business Description: our main products are mechanical seal, dry gas seal (or gas-lubiricated mechanical seal) and sealing control system.
