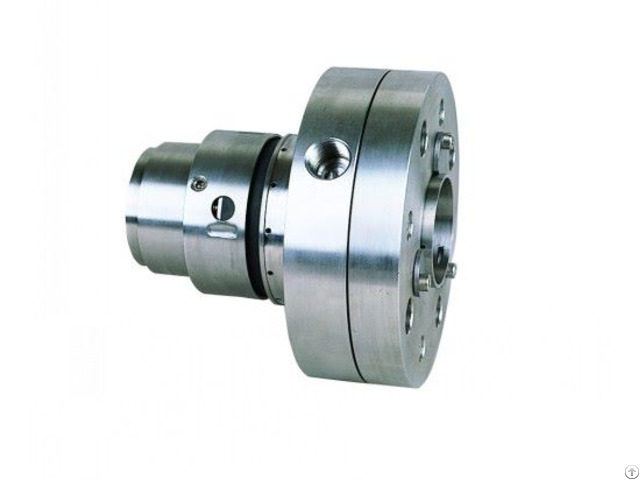

Ytg101 Tandem Balanced Spring Loaded Dry Gas Seal For Pump Compressor - China
price: contact company for price
Operating Conditions:
Pressure: 0~10.0MPa
Temperature: -104~320℃
Rotary speed: 50~3000r/min
Shaft dimension: 18~200mm
Medium: all kinds of media without particles, and not easy to crystallize media
Product material: stainless steel, rubber, graphite, carbon.
Design features:
The main seal is non-contact mechanical seal.
The second seal is dry gas seal, which is the non-contact operation, and make sure the main seal has some back pressure.
A little process medium leaked out by the main seal will be discharged into the torch.
The main seal fails and the dry gas seal take effect.
Competitiveness:
High-performance, competitive price, prompt delivery and best service
Longer service life and low energy consumption
Can be customized according to customer’s requirement
More than 20 years' designing and manufacturing experience
More than 20 years’ vendor of Sinopec and PetroChina
Get the ISO9001, ISO14000 and ISO18000 certificate
Awarded a number of utility patents in researching and designing seals
Company Contact:
- Posted By: Chengdu Yitong Seal Co., Ltd.
- Phone: +86 13402858953
- Address: Xingguang Road (west) No.26, Economic and Technological Development Zone, Chengdu , Sichuan , China
- Email:
- Website: http://www.cdytseal.com
Published date: January 19, 2017
- Business Description: our main products are mechanical seal, dry gas seal (or gas-lubiricated mechanical seal) and sealing control system.
