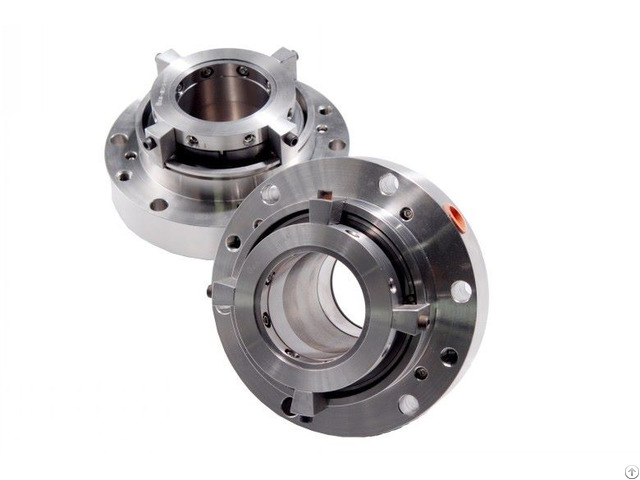

Ytbb174 Dual Cartridge Heavy Duty Spring Mechanical Seal For Slurry Pump - China
price: contact company for price
Operating conditions
Pressure: 0~2.0MPa
Temperature: 0~200℃
Speed: 3000 r/min
Shaft Size: 18~300mm
Medium: various salt solutions, molten urea, phosphoric acid slurry, the dyeing liquid, slurry, liquid medicine and soluble granules medium; pulp, fiber slurry medium.
Material: stainless steel, rubber, graphite, carbide
Design features:
Double end face mechanical seal, on-site installation is very simple.
Medium end of the elastic component does not contact with the media, can effectively prevent clogging impurities; friction and wear of materials with good performance for the group.
Both ends of the multi spring structure, short axial dimensions, medium side adopts double balanced structure, the flushing water pressure is higher than the medium pressure is the double end blocking seal, effectively prevent the medium leakage.
Flushing water is lower than the medium pressure for the tandem seal, can improve the level of sealing lubrication and taking friction heat.
Competitiveness:
High-performance, competitive price, prompt delivery and best service
Longer service life and low energy consumption
Can be customized according to customer’s requirement
More than 20 years' designing and manufacturing experience
More than 20 years’ vendor of Sinopec and PetroChina
Get the ISO9001, ISO14000 and ISO18000 certificate
Awarded a number of utility patents in researching and designing seals
Company Contact:
- Posted By: Chengdu Yitong Seal Co., Ltd.
- Phone: +86 13402858953
- Address: Xingguang Road (west) No.26, Economic and Technological Development Zone, Chengdu , Sichuan , China
- Email:
- Website: http://www.cdytseal.com
Published date: January 19, 2017
- Business Description: our main products are mechanical seal, dry gas seal (or gas-lubiricated mechanical seal) and sealing control system.
