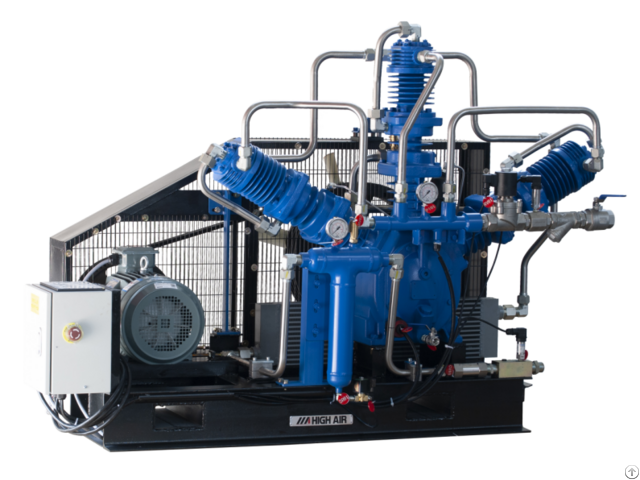

Oil Free Compressor - China

The OF Series Oil-Free Gas Compressors adopt a cylinder oil-free lubrication design, avoiding the contamination of gas by lubricating oil, and eliminating the need for filtering and purification equipment.

The OF compressors feature higher energy efficiency, lower maintenance costs, and less environmental pollution, making them widely used in various gas compression applications.

*The modular design of the blocks allows for flexibility in selecting single-stage, two-stage, or three-stage compression based on the compression ratio, providing strong adaptability.

*The compressors are designed for full air-cooling, featuring highly efficient air-cooled cylinders, eliminating the need for complex cooling water systems, making them suitable for outdoor use.

*The compressor adopts a crosshead and packing design, with the crankshaft, connecting rod, and crosshead lubricated with oil, while the compression chamber and packing are oil-free lubricated.

*The maximum discharge pressure is 15MPa.

*Low maintenance costs and easy maintenance.

*The heavy-duty block is suitable for continuous operation.

*The dynamic balancing design results in low vibration and does not require special foundations.

Our standardized modular design allows for flexible and simplified configuration of pistons, cylinders, and gas valves, enabling us to provide our customers with the most efficient and economical systems.

Our design features and advantages ensure that our units can withstand the test of time and gain recognition from our users.

*Oil-free lubrication of the block ensures that no lubricating oil enters the downstream system.

*The modular design of the block allows for flexible and diverse cylinder configurations.

*The overall modular design enables single-point connections and easy installation.

*The unit has low vibration and does not require special foundations, only needs to bear its own weight, resulting in low installation costs.

*The air-cooled cylinders and coolers design eliminate the need for cooling water, avoiding scaling issues.

*Convenient maintenance with minimal workload.

*Heavy-duty design for durability and longevity.

*Various drive options are available.

*Fully automatic intelligent control system monitors various parameters of the compressor, automatically controlling start/stop and loading/unloading processes.

Applications

*Oil free Nitrogen booster

*Oil free Air booster

*Helium/Argon booster/recovery

*Wellhead compressor

*VRU compressor

*Other gas booster
