Automatic Hydraulic Tyre Changer Hot Sale - China

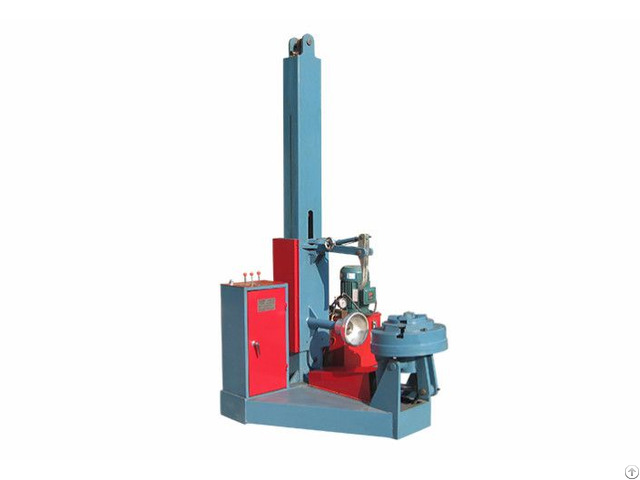

Automatic hydraulic tyre changer

1 - Applicable to small and medium car, discouraged avaliable(explosion) tire, lower than the flat performance tires, tubeless tires are available.

2 - Foot pneumatic valve piston rod assembly is made of pure steel, so the surface is more smooth and corrosion resistance, longer life.

Drawer control assembly, simple structure, fast and easy maintenance.

3 - The trapezoid colum base and housing overall box welding design, fully ensure the high intensity.

Operation under the bearing structure, the overall stability and reliability.

4 - Backward curved arms designed, so the top hub chuckan expand more room for operation and avoid accidental injury when clamping hub.

5 - Thickness is 15mm wheel chuck parts, with the function of claw size fine adjustment, claw can precise(fine) control at any position, convenient for clamp the wheel, to avoid accidentally injure.

6 - Using 3mm thickness steel plate combined cabinet, firm structure, weld concealment, beautiful appearance.

7 - Best quality all-aluminum cooper motor with advantages of faster heat dissipation, low loss, high power.

8.180mm all-aluminum double-inlet tread separation cylinder, fully sealed design, low pressure supported, longer service life.

If you have any question on 50 ton pneumatic hydraulic jack, pneumatic hydraulic jack, air hydraulic pump with combi bead breaker, automatic hydraulic tyre changer and pneumatic hydraulic beam jack, Welcome to contact us, we will give the professional answers to you.

Motor power 0.75kw/1.1kw

Power supply: 110V/220v-1ph 220V/380V-3ph 50hz/60hz

Operation pressure: 1.7-1.8Mpa

Max.

wheel dia: 420mm

Wheel width: 3-13"

Rim clamping from outside: 10-17"

Rim clamping from inside: 12-20"

Bead breaker pulling force: 2500KG

Packing dimensions: 1050x850x950mm

NW.

KG: 360kgs
