Yc Automatic Steel Coil Slitting Line - China
price: contact company for price

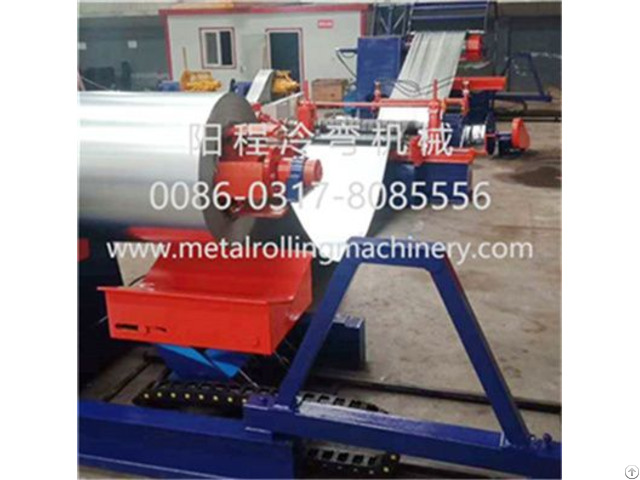

YC Automatic 1.25M-1.5MM Steel Coil Slitting Line
Automatic Slitting Line
SPECIFICATIONS
Hydraulic decoiler with coil car→feeding platform→leveling system→slitting system→scrap winding system→tension stand→hydraulic recoiler with coil car, PLC computer control system, hydraulic system, electric motors
Steel Coil Slitting Line SURFACE TREATMENT
1).
Processing material: steel strip, coil tensile strength 280Mpa-550Mpa
2).
Thickness of coiled plate: 0.3-1.5mm
3).
Width of coiled plate: within 1250mm
4).
Precision of slitting width tolerance: ±0.05mm
5).
Line speed: 15-30m/min
6).
Loading capacity of de-coiler machine(feeding machine): 7T
7).
Loading capacity of re-coiler machine(receiving machine): 7T
8).
Coil I.
D: 450-550mm
9).
Coil O.
D: 1250mm
10).
Knife pivot diameter of slitting: 145mm
11).
Slitting blade 200×145×10
12).
Number of blades: 18 sets
13).
Material of slitting blade: Cr12MOV
14).
Hardness of blade: HRC58°—60°
15).
Recoiler I.
D : 508mm;
16).
Power: 380V/50Hz/3Ph (or as per your request)
Automatic Steel Coil Slitter TECHNOLOGY
(1) Hydraulic coil Car
The car can move levelly and vertically, which is convenient for putting the steel coils to the un-coiler.
It is driven vertically by hydraulic cylinder with 4 guide pillars.
The level movement is driven by hydraulic motor.
(2) 7T Hydraulic de-coiler (4KW)
supporting steel rolls and uncoiling
the movable structure of double way hydraulic top tight
hydraulic pressure drives the level and landscape orientation movement
(3).
Slitting machine (11KW)
Drive system consists of drive stand, decelerator, 11KW motor, the gear distribution box, coupler, connection shafts and cover.
Main section is made up of base, fixed brackets, large slide block, 2 blade pivot, movable brackets, slide block, the adjustment device of front and back of the brackets and the lifting device of blade pivot, supporting blades, isolating cover and rubber ring, etc.
the main section adopts manually move out the brackets which is very convenient to change the blades
(4).
Scrap Winder (3KWx2)
It consists of base, the shaft and plate of edge material, friction wheel, supporting wheel chain, chain, decelerator and 3KWx2 electric machine.
(5).
Tension stand
consist of base, pre-dividing shaft, bracket, press shaft, hydraulic damp device and hydraulic shaft lifting the press down device
(6).
7T Hydraulic recoiler (4KW)
It is consist of base, bearing frame, recoiler shaft, the expansion device of hydraulic recoiling, the expanded recoiling plate, movable arm bearing, supporting decelerator and motor.
(7).
Hydraulic unload car
the car can carry the dividing coils and lift up and down and is movable
(8).
Electrical control system:
including the complete wire to installation as well as the electrical box to operate the whole lines
(9).
Steel Coil Slitting Line Hydraulic System
the hydraulic stand, pipes and the connect part
SALES TERMS
1).
Machine Price: Please contact us, we will try to give you good discount for starting our cooperation
2).
Payment term: 30%TT should be paid as advance deposit, 70%TT before shipment
Or 100% LC at sight
3).
Package: naked with simple plastic film and loaded in one 20-feet container
4).
Delivery time: 50 working days after receipt of the deposit
5).
Guarantee: 12 months.
If any part of machine breaks, we will supply it for free.
6).
After sales service
This Automatic Steel Coil Slitting Line is maintained free of charge for 12 months.
When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug.
Buyers should take all the fees for technicians traveling abroad, and pay 100USD\day\person.
Company Contact:
- Phone: 15226630086
- Address: Opposite of Fuxingyuan, Xihuan Road, Botou CIty, HeiBei , China
- Email:
Published date: December 24, 2019
- Business Description: Our company, named Botou Yangcheng Cold Forming Machine Co., Ltd. is a professional manufacturer of roll forming machine.
As an integrated company, we are specialized in developing, designing, making and debugging different kinds of roll forming machines.
We have experienced technicians and designers, who started machine designing and making since 1993, to ensure we are the highest standard in the same industry.
To satisfy customers with the best quality is our development principle.
Both quality and service are guaranteed, no matter for standard machines or special designed machines.
