Xh7125 Vertical Machining Center - China

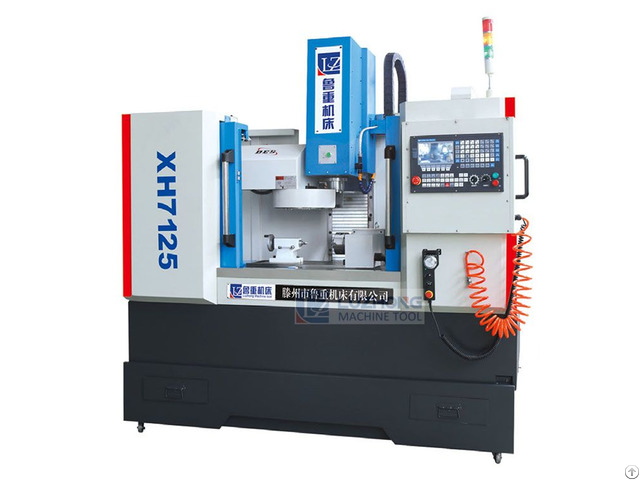

XH7125 Vertical Machining Center

CNC Vertical Machining Center

machining center, machining centers manufacturing

Product main technical specifications:

Specifications Unit XH7125

Table size mm 900×250

X-axis travel mm 450

Y-axis travel mm 260

Z-axis travel mm 380

Distance from spindle axis to column surface mm 330

Distance between spindle nose and worktable mm 50-430

The vertical tolerance of distance between spindle nose and worktable mm ≦0.02

X/Y/Z rapid traverse M/min 6/5/4

Max.

spindle speed rpm 6000

Spindle taper BT30

Main motor power kw 2.2

X axis motor torque N.

m 7.7

Y axis motor torque N.

m 6

Z axis motor torque N.

m 6

Tool capacity 12 armless type tools magazine

Positioning accuracy mm 0.02

Repeat positioning accuracy mm 0.01

Machine dimension mm 2200×1650×2200

Machine weight kg 1800
