Wldh Horizontal Spiral Ribbon Mixer - China

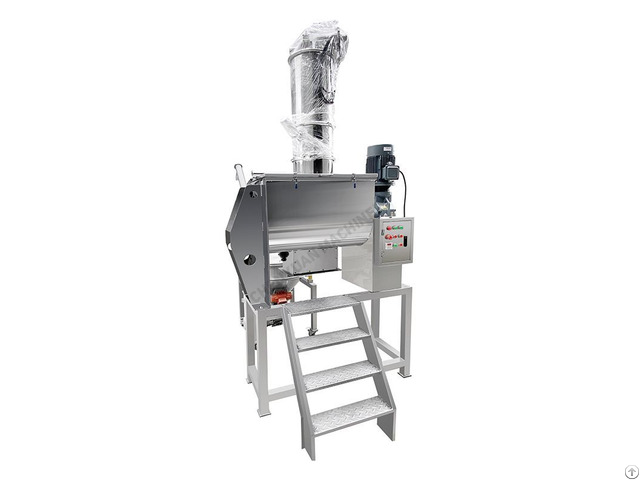

The Horizontal Spiral Ribbon Mixer consists of a U-shaped container, a ribbon agitating blade and a transmission component; the ribbon-shaped blade is generally made into a double or triple layer, and the outer spiral gathers the material from both sides to the center, and the inner spiral the material transportes from the center to the sides to form a convective mixing.

The ribbon mixer has good effects on the mixing of viscous or cohesive powders and granules and the mixing of liquid and paste materials in the powder.

The cylinder cover can be made into a fully open door to facilitate cleaning and replacement of the equipment or product.

Technical Parameter

Model Full volume(M³) Loading coefficient Motor power(kw) Dimensions (L×W×H) Equipment weight

WLDH-0.1 0.1 0.4-0.8 2.2 1190×740×770 330

WLDH-0.3 0.3 0.4-0.8 5.5 2030×630×980 720

WLDH-0.5 0.5 0.4-0.8 7.5 2320×730×1130 980

WLDH-1 1 0.4-0.8 11 2800×920×1320 1700

WLDH-1.5 1.5 0.4-0.8 15 3180×1020×1550 1800

WLDH-2 2 0.4-0.8 15 3310×1120×1640 2100

WLDH-3 3 0.4-0.8 18.5 3750×1290×1820 3000

WLDH-4 4 0.4-0.8 22 4200×1400×1990 3980
