Wet Type Wire Drawing Machines - China

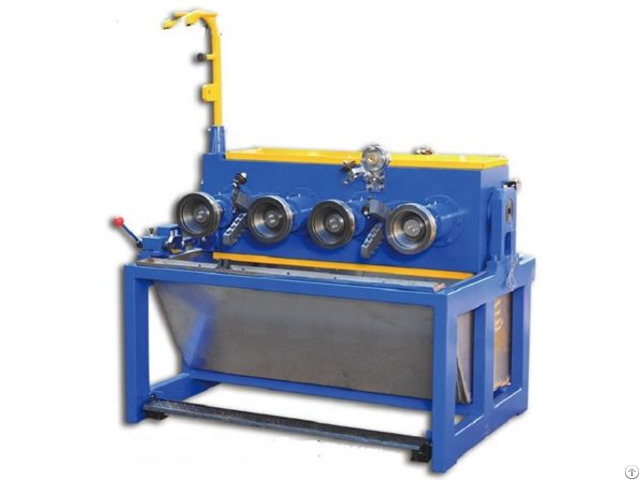

Wire / Rod Processing Scope: This CJ08 light type wire drawing machine is used to treat metal wires of the following sizes in mm: Diameter 0.8-1.5mm

Finished wire diameters outgoing: Diameter 0.10-0.25mm Machine Size:

3200mm Length x 1200mm width x 1200mm height

Weight: 1600kg

Water tank thickness: 10mm/ 8mm Features:

CJ08 Wet Drawing Machine is designed with European and American advanced technology, it offers the following benefits:

Simple and safe to operate and maintain;

High efficiency, energy-saving;

Advanced PLC control, saving labor work, one people can operate one production line;

Wire drawing machine consisting water seal cooling system, so the temperature of the machine remains comparatively low, safe to the production and workers;

Frequency adjustable motor adopted, hence the speed of the motor can be adjustable.

Application

Wet drawing machine is used for production of steel wire for conveyor belt, tire bead wire, high-pressure hose wire, gas shielded welding wire, staples, spring wire, wire ropes, etc.

Company Contact:

• Posted By: Changjing Wire Drawing Machinery Co.

• Phone: 536523

• Address: Gulian Street, Dezhou, China, dezhou , shandong , China

• Email:

• Website: https://www.wiredrawingmachine.net

• Business Description: ChangJing is one of the pioneer manufacturers of wire machines in China.

  Our machinery equipment is used for manufacturing of industrial steel wires: Iron wire, galvanized wire, stainless steel wire, annealed wire, powder coated wire and other metal wires.

  Industries served: The wires are used in manufacture of Mattress, Clothing Hangers, Concrete Nails, Roofing Nails, Wire Ropes, Pre-stressed Stranded Wire for Concrete Construction, also Netting and Mesh Products ( Hexagonal Mesh, Square Mesh, Welded Mesh, Chain Link Fencing, Gabions and etc).

  Featured products: Our wire drawing machines fall into Dry Type, Pulley Type, Water Type and Straight Line Wire Drawing Machines.

  It can also be classified into light type, medium type and heavy type wire drawing equipment.

  Subsidiary equipment includes wire winding devices, wire discharging machine, wire galvanizing machine and etc.

  It is our aim to offer wire machinery with reasonable price, the super quality service for users.

  We always strive to deliver high efficient manufacturing machines with constant technical innovation and effort in eco-friendly design.

  Modular Wire Drawing Mill Solutions

  ChangJing supplies modular solutions for wire drawing in full sets.

  The production line / mill is composed with:

  Combined drawing machine;

  Chain draw bench;

  Peeling machine;

  Tow roll straightening machine;

  Irregular bar straightening machine;

  Pointing machine;

  Chamfering machine;

  Flat rolling mill machine;

  Polishing machine for round tube / bar
