    • Welded Pipe Mill - China

    price: 200.00 Dollar US$

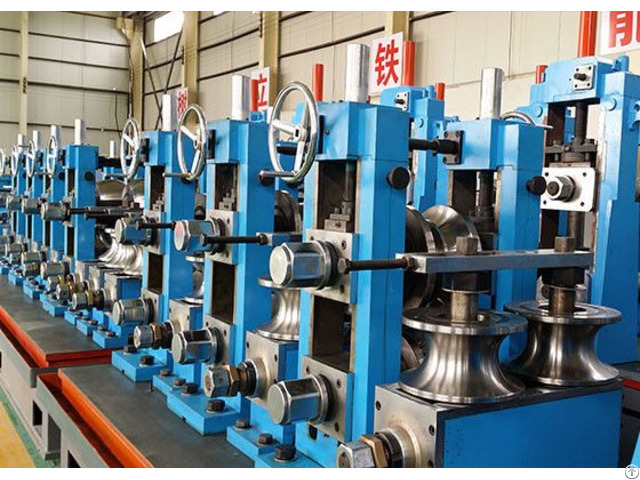

    Welded Pipe Mill

    Products Photos Catalog Welded Pipe Mill Photos Catalog

    This equipment is specially used for producing Carbon High Frequency Welded Pipe Mill.

    It made by refined materials in high precision and equipped with fixed length cutting saw.

    The main machine includes forming, welding, sizing and straightening device.

    The composition of equipment is from decoiler to fixed length-cutting saw.

    Rolling speed can be adjusted correspondingly within suitable range of pipe diameter and wall thickness.

    1 - process of the Production Line

    Raw material (strip steel roll) – Material feeding – End cutting and butt welding (hand welding) – Strip storage cage – Material feeding and forming – High frequency welding – Removing outer burr – Cooling water jacket – Fix the diameter and straightening – Cut off with flying saw – Material unloading (Manually stow and bind up) – Inspection – Storehouse

    2 - Technical parameter

    WB12：DiameterΦ7-25m m, Wall thickness0.3-1.0mm, Speed90M/min, Power of major motor22KW, Power of high frequency welder60KW

    WB25：DiameterΦ8-32m m, Wall thickness0.4-1.5mm, Speed90M/min, Power of major motor37KW, Power of high frequency welder60KW

    WB32：DiameterΦ13-50 mm, Wall thickness0.6-1.8mm, Speed90M/min, Power of major motor55KW, Power of high frequency welder100KW

    WB50：DiameterΦ20-60 mm, Wall thickness0.8-2.7mm, Speed50M/min, Power of major motor75KW, Power of high frequency welder100KW

    3 - Main features: Simple structure and beautiful appearance, because we adopt the shape-steel structure and process as a whole after welding.

    It has the ability of strong loading and stable operation when running the machine.

    The machine has features of low noise and high efficiency.


    Company Contact:


    • Phone: +86-18330116125

    • Address: Room711,Culture building, Beijing Road, Yunhe District, Cangzhou City, Hebei,China, Cangzhou , China

    • Email: Email


    Published date: October 10, 2018

    • Business Description: GEIT Group is a highly recognized fabrication of Color coating equipment company that has been committed to quality and service since 1992 - It is specialized in design, manufacture and install of Color coating line of steel coil, Color coating line of aluminium coil, etc.
